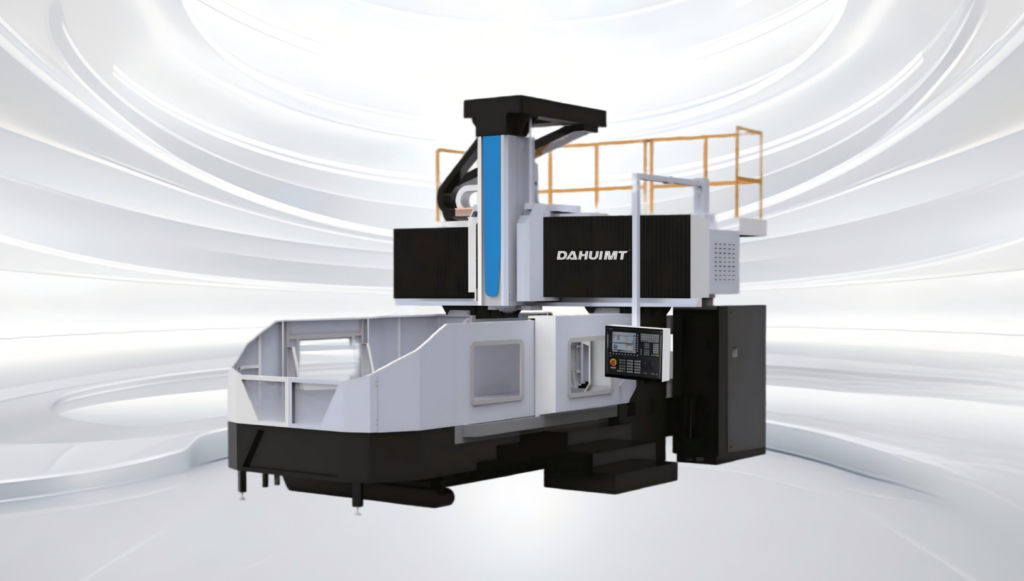

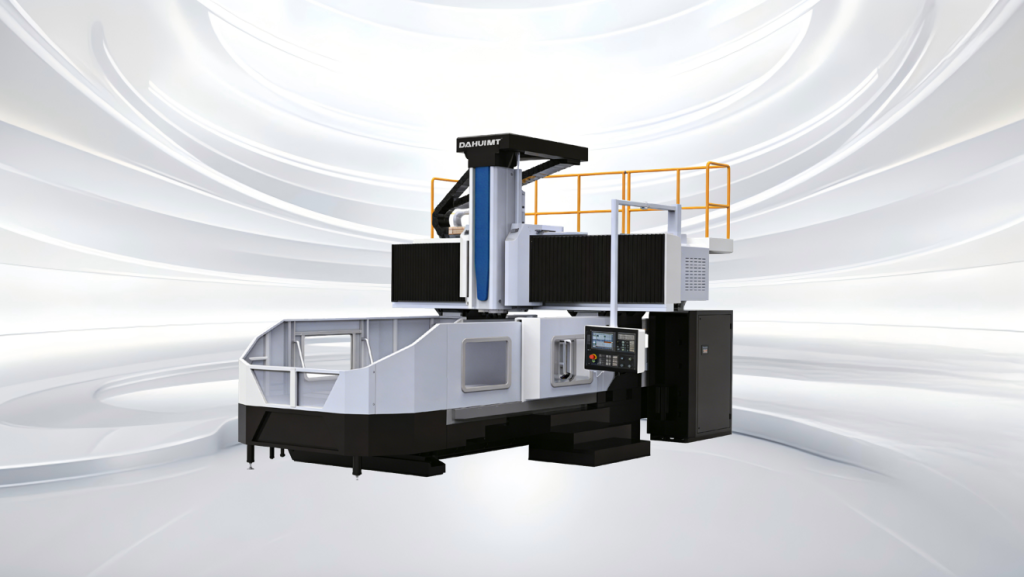

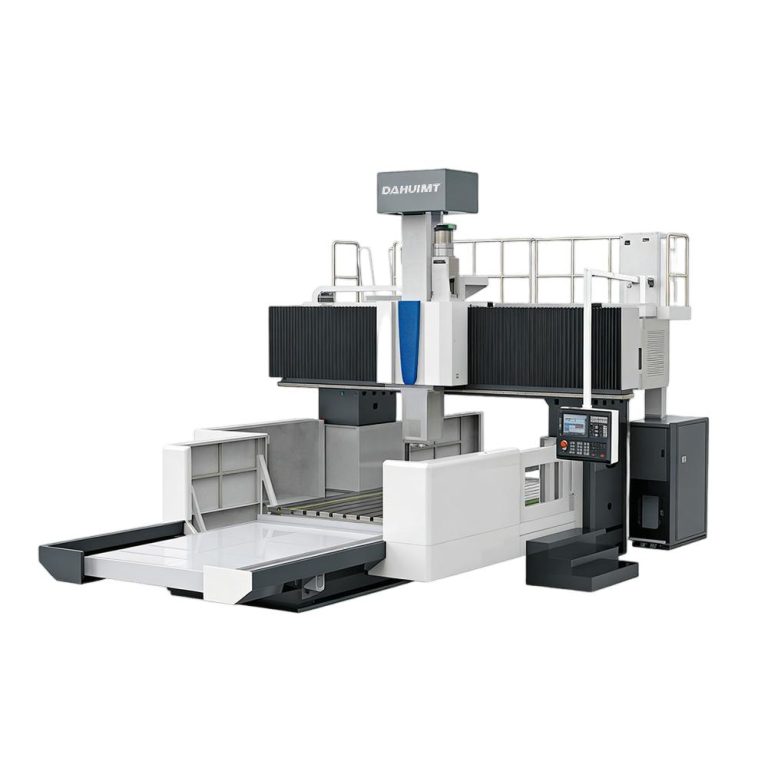

XKW 23 Series

High-Speed, High-Precision Gantry Machining Center

The series of CNC fixed beam gantry boring and milling machine, using column beam integrateddesign, configuration of high rigid large torque spindle and high dynamic response drive system,easy to operate, flexible, safe and reliable, can be widely used in aviation, aerospace, rail transit,automobile, mold and other mechanical processing fields.

·The machine adopts high rigidity gantry frame structure, the important parts are made of resin sandcastings, and after two manual aging treatment, has enough static and dynamic rigidity and goodaccuracy retention

·The three axes of the machine adopt high precision double nut preload roller screw, and prestretch,strong transmission rigidity, stable and reliable precision.

·X/Y axis adopts heavy-duty linear guide rail (roller) structure, Z axis adopts rectangular hard railstructure, Z axis is equipped with double nitrogen liquid balance cylinder, small motion inertia, fastresponse speed.

·Machine spindle adopts Taiwan high rigidity spindle unit, long service life, high reliability, optionalgear head drive or spindle motor direct transmission structure

Are you interested in our Gantry Machining Center ?

We would be happy to make an individual offer for you!

Technical Data

Category	Item	Unit	XKW2316A×20	XKW2317M×20	XKW2316A×30	XKW2316A×40	XKW2322M×30	XKW2325M×40	XKW2324×40 / XKW2324FA×40
Processing Range	Effective gantry width	mm	1600	1720	1600	1600	2200	2520	2400
	X-axis stroke	mm	2000	2200	3000	4200	3000	4200	4200
	Y-axis stroke	mm	1900	1700	1900	1900	2200(2400)	2520	2600
	Z-axis stroke	mm	800	850	800	800	1000	1000	1000
	Distance from spindle end face to work surface	mm	190-990/250-1050	340~1190	190-990/250-1050	190-990/250-1050	150~1150	175~1175	250-1250
Worktable	Table size (width × length)	mm	1300×2000	1500×2200	1300×3000	1300×4000	2000×3000	2000×4200	2000×4000
	Table Loading Weight	T	4T	4T	5T	6T	9T	12T	16T
	Table T-slot (Number – Size × space)	–	7-22×170	9-22×150	7-22×170	7-22×170	11-22×175	11-22×175	13-22×150
Spindle	Ram form/section size (Optional)	–	T-type guide rail	T-type guide rail/Square ram	T-type guide rail	T-type guide rail	T-type guide rail/Opt. square ram	T-type guide rail/Square ram	T-type guide rail/Square ram 400×400
	Maximum spindle speed	rpm	6000rpm	6000rpm (Optional ratio: 1:1, 1:1.5)	6000rpm	6000rpm	6000rpm (Optional ratio: 1:1, 1:1.5)	6000rpm (Optional ratio: 1:1, 1:1.5)	6000/4000rpm
	Spindle power	kW	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5	22/26
	Spindle drive mode	–	Direct drive/Gear head	Synchronous belt/8P gear head	Direct drive/Gear head	Direct drive/Gear head	Synchronous belt/BP gear/gear head	Synchronous belt/BP gear/gear head	Direct drive/Gear head/ZF box
	Spindle taper	–	BT50	BT50	BT50	BT50	BT50	BT50	BT50
	Rapid speed	m/min	12/12/12	12/12/12	12/12/12	10/12/12	12/12/10	10/12/10	10/12/10
	Cutting feed rate	m/min	6/6/6	6/6/6	6/6/6	5/5/5	5/5/5	5/5/5	5/5/5
ATC (Optional)	Tool storage capacity	T	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60
	Maximum tool diameter (Full/Empty)	mm	Φ125/230	Φ125/230	Φ125/230	Φ125/230	Φ125/230	Φ125/230	Φ125/230
	Maximum tool length	mm	300	300	300	300	300	300	300
	Maximum tool weight	kg	18	18	18	18	15	15	15
Other	Total power supply capacity	kVA	50	50	50	50	60	60	60
	Machine dimension (Length × width × height)	mm	6500×5500×4500	6500×5800×4500	8500×5500×4500	10500×5500×4500	9000×6000×5500	11000×6200×5500	13000×6500×6000
	CNC system	–	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF

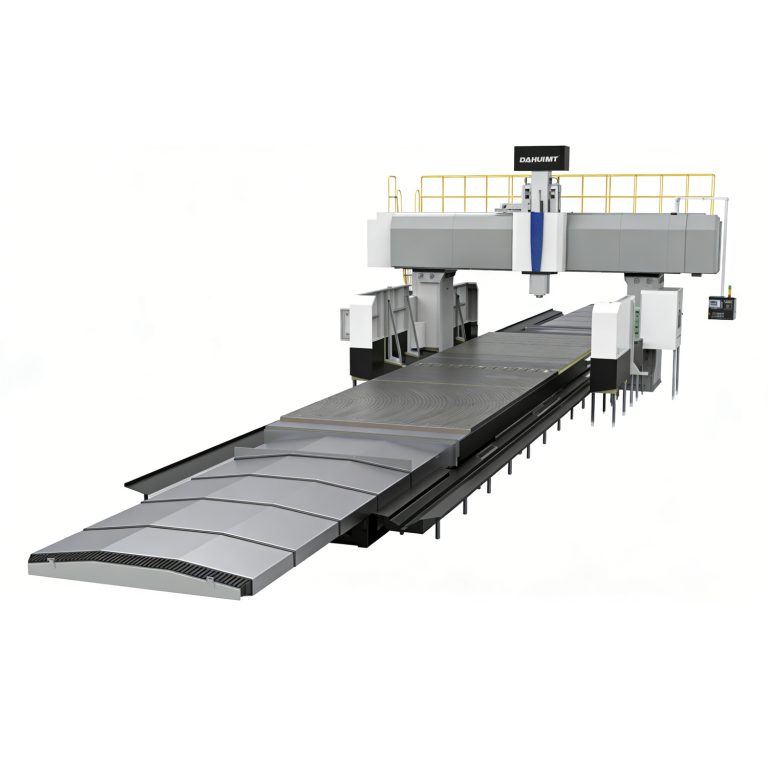

XHW2328FBx40(Cost-effective)

·The three axes of the machine adopt high precision double nut preload roller screw, and prestretch,strong transmission rigidity, stable and reliable precision.

·XY axis adopts heavy-duty linear guide rail (roller) structure, Z axis adopts rectangular hard railstructure, Z axis is equipped with double nitrogen liquid balance cylinder, small motion inertia, fastresponse speed.

·Machine spindle adopts Taiwan high rigidity spindle unit, long service life, high reliability, optionalgear head drive or spindle motor direct transmission structure.

Item	Unit	XKW2328B30 / XKW2328FB30	XKW2328B40 / XKW2328FB40	XKW2328B60 / XKW2328FB60
Effective Gantry Width	mm	2800	2800	2800
X-Axis Stroke	mm	3200	4200	6200
Y-Axis Stroke	mm	3000	3000	3000
Z-Axis Stroke	mm	1000/1250	1000/1250	1000/1250
Table Size (W*L)	mm	2000*3000	2000*4000	2000*6000
Max. Table Load	T	12T	16T	20T
Table T-slot (No. – Size*Space)	–	9-28*200	9-28*200	9-28*200

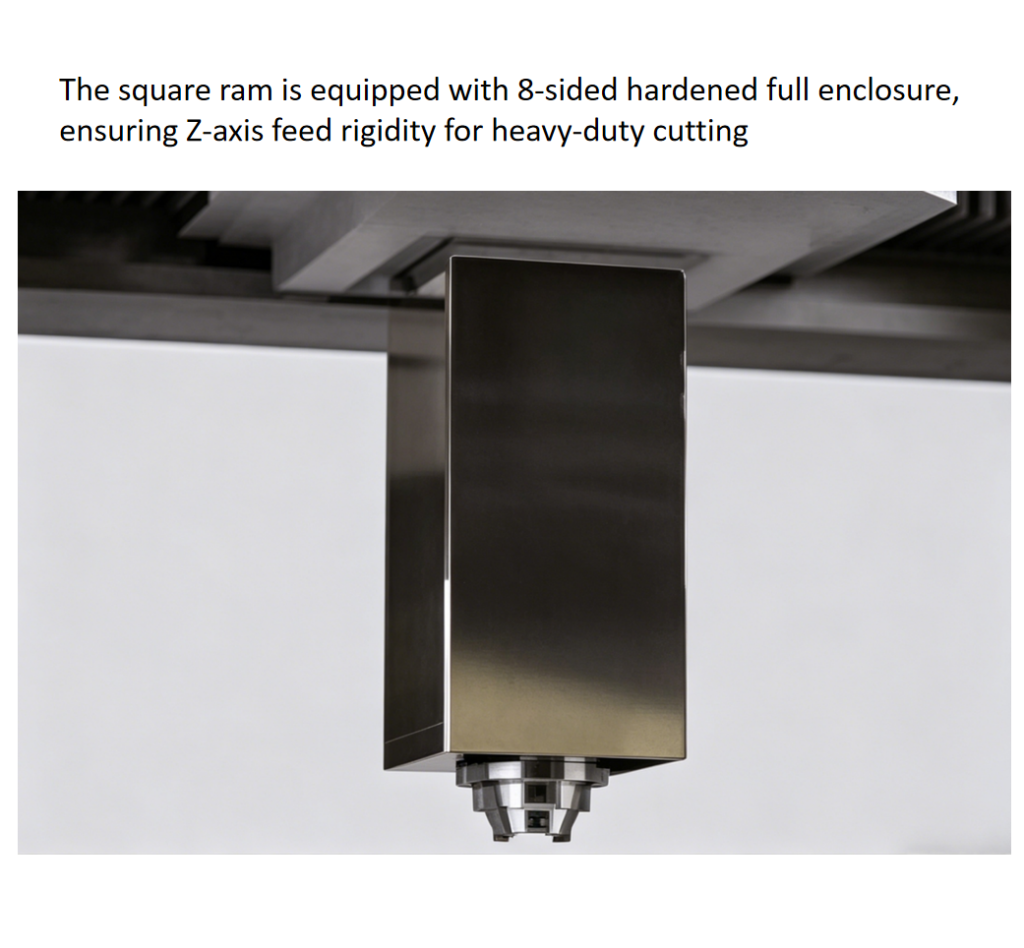

Ram Form/Section Size (Optional)	–	T-type guide rail / Square ram 400*400	T-type guide rail / Square ram 400*400	T-type guide rail / Square ram 400*400
Max. Spindle Speed	rpm	6000/4000	6000/4000	6000/4000
Spindle Power	kW	22/26	22/26	22/26
Spindle Taper	–	BT50	BT50	BT50
Rapid Traverse Speed	m/min	10/12/10	10/12/10	10/12/10
Cutting Feed Rate	m/min	5/5/5	5/5/5	5/5/5
Tool Magazine Capacity (Optional)	T	24/32/40/60	24/32/40/60	24/32/40/60
Max. Tool Diameter (Full/Empty)	mm	φ125/230	φ125/230	φ125/230
Max. Tool Length	mm	300	300	300
Max. Tool Weight	kg	18	18	18
Total Power Supply Capacity	kVA	60	60	60
Machine Overall Dimension (LWH)	mm	900070006200	1100070006200	1500070006200
Standard CNC System	–	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF

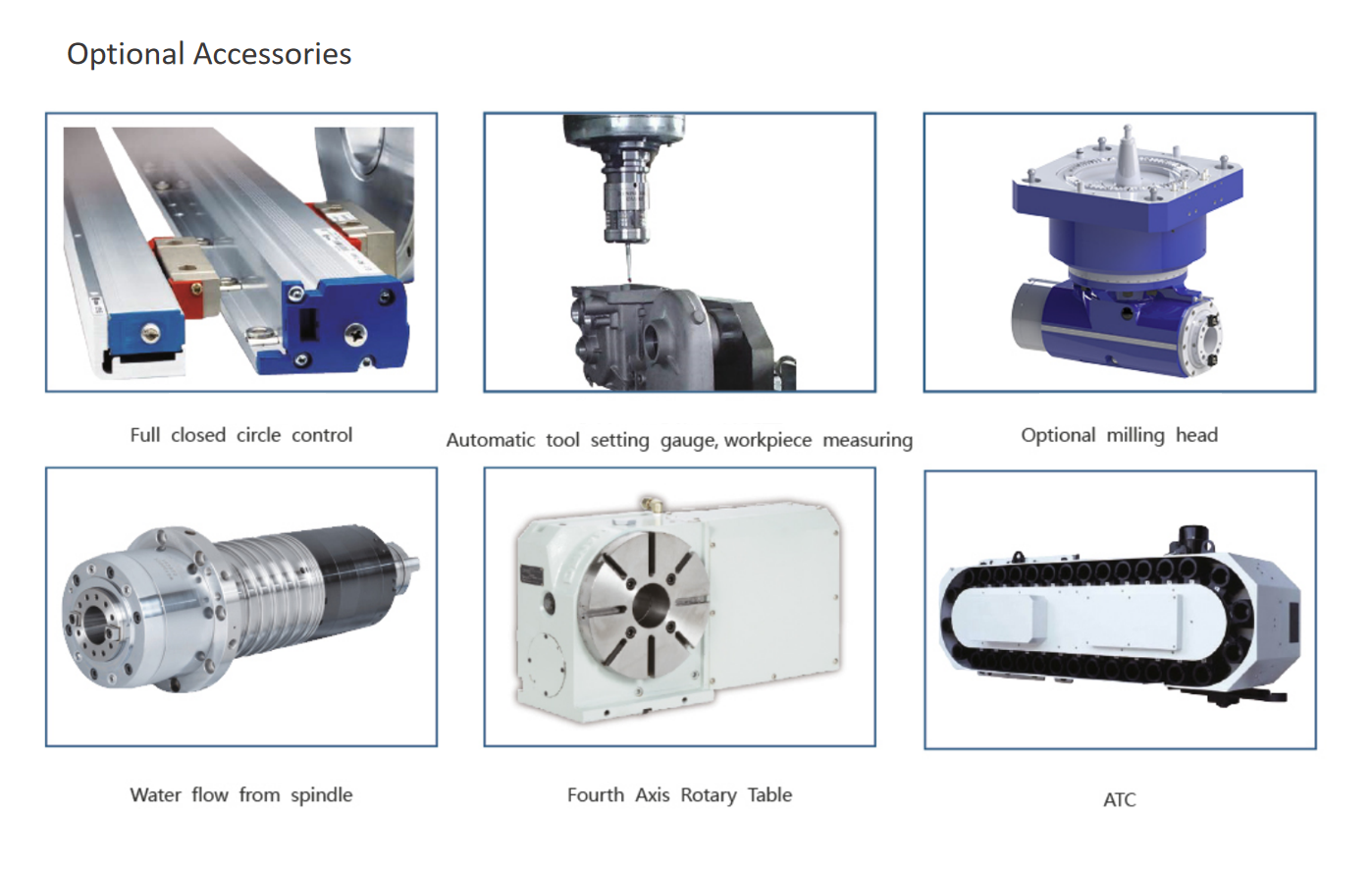

Optional Configuration

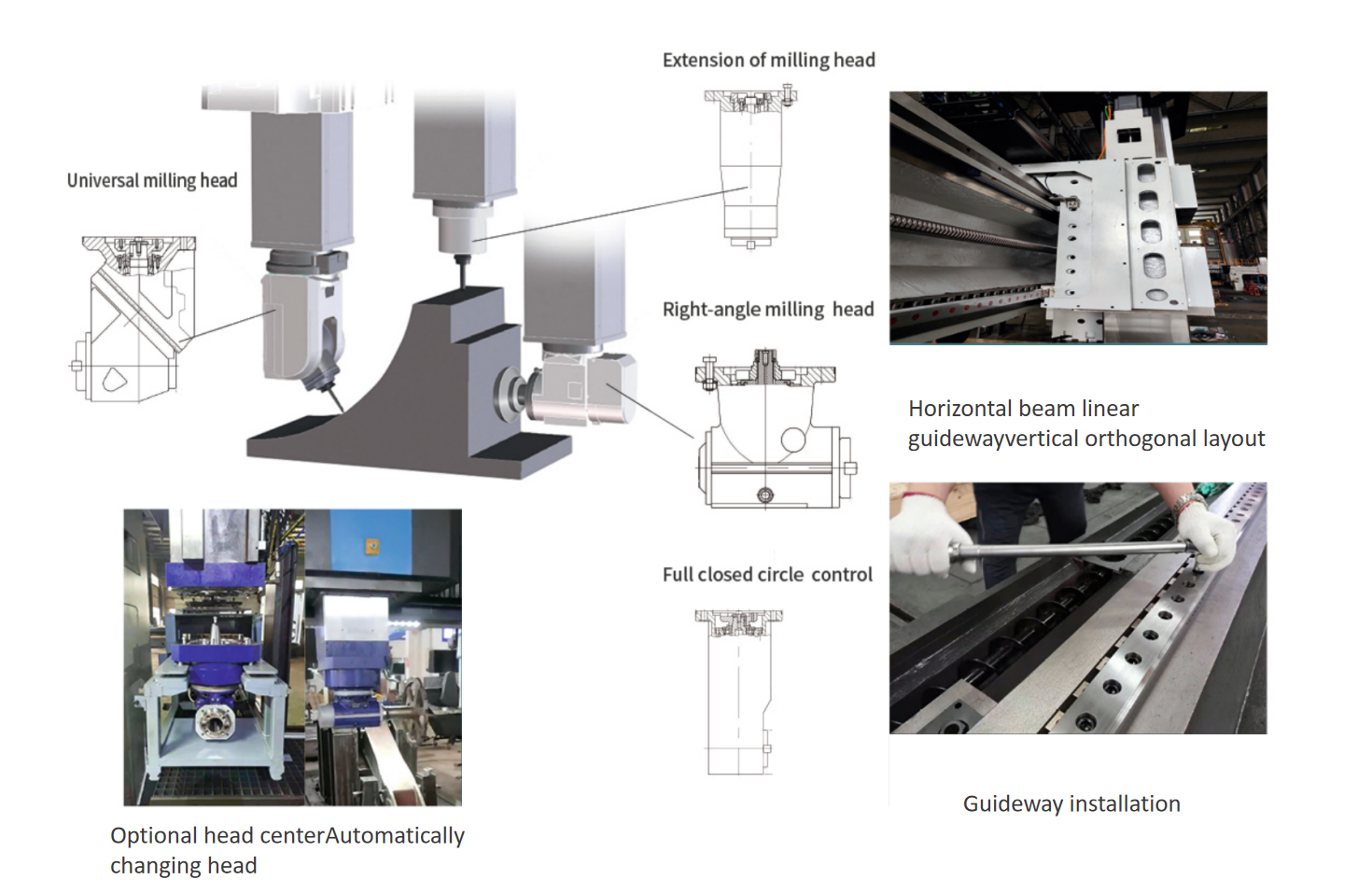

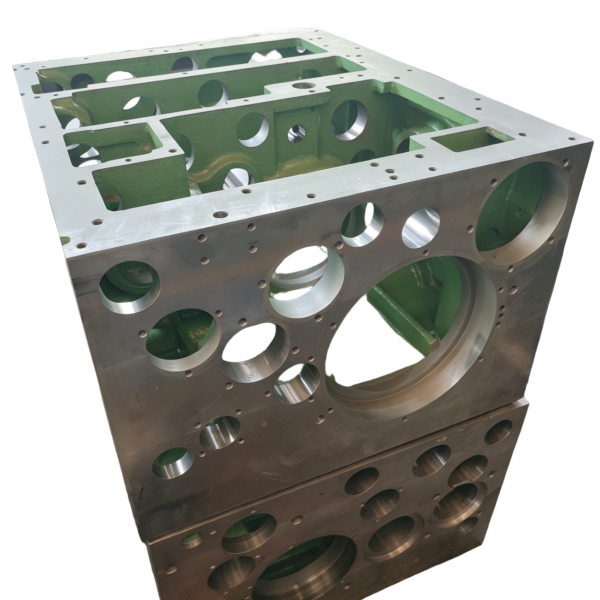

Right-angle Attachment Narrow Right-angle Attachment Extension Head

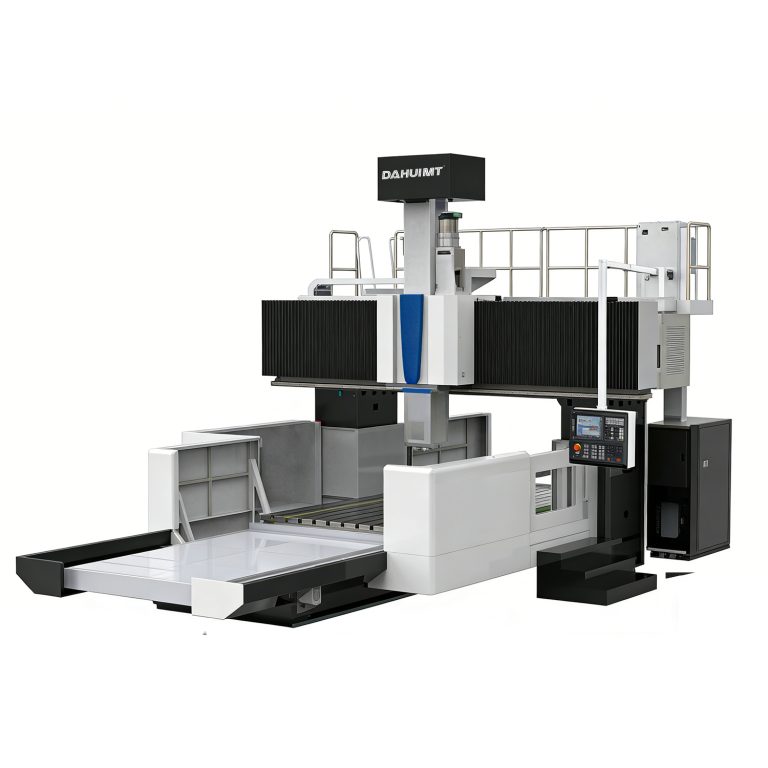

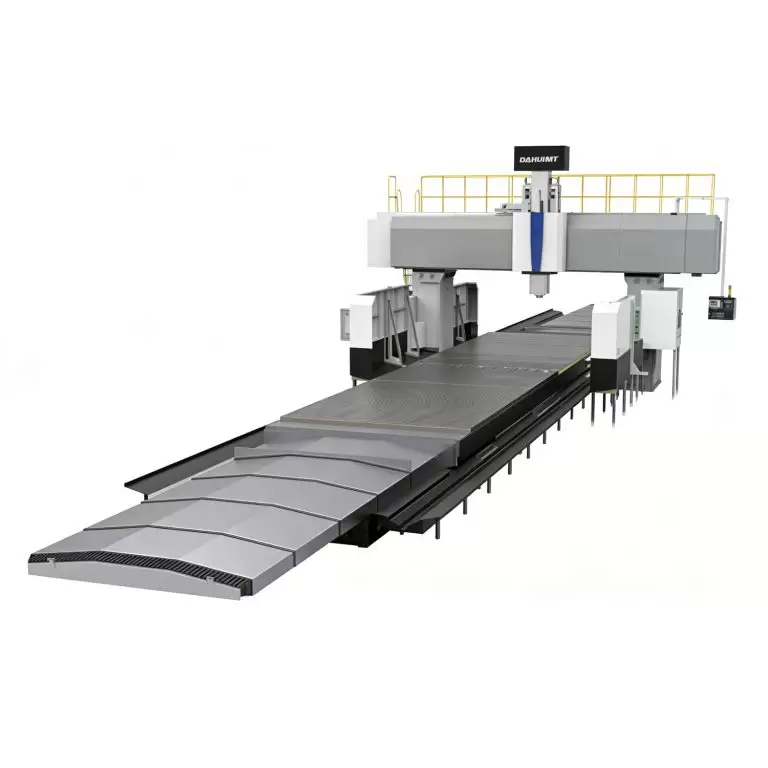

XHW2350FTx80(Heavy-Duty Cutting Type)

Item	Unit	XKW2332FA40 / XKW2332FT40	XKW2332FA50 / XKW2332FT50	XKW2337FA60 / XKW2337FT60	XKW2342FA60 / XKW2342FT60	XKW2342FA80 / XKW2342FT80	XKW2342FA100 / XKW2342FT100	XKW245FT*80
Effective Gantry Width	mm	3200	3200	3700	3700	4200	4200	4500
X-Axis Stroke	mm	4200	6200	6200	3900	4400	8300	4700
Y-Axis Stroke	mm	3400	3400	3400	3900	4400	4400	4700
Z-Axis Stroke	mm	1250/1500	1000/1250(F)	1250/1500	1250/1500	1250/1500	1250/1500	1500
Table Size (W*L)	mm	2500*4000	2500*5000	2500*6000	3000*8000	3000*6000	3000*8000	3000*8000
Max. Table Load	T	20T	24T	24T	28T	32T	36T	28T
Table T-slot (No. – Size*Space)	–	12-28*200	12-28*200	12-28*200	11-36*250	11-36*250	11-36*250	11-36*250

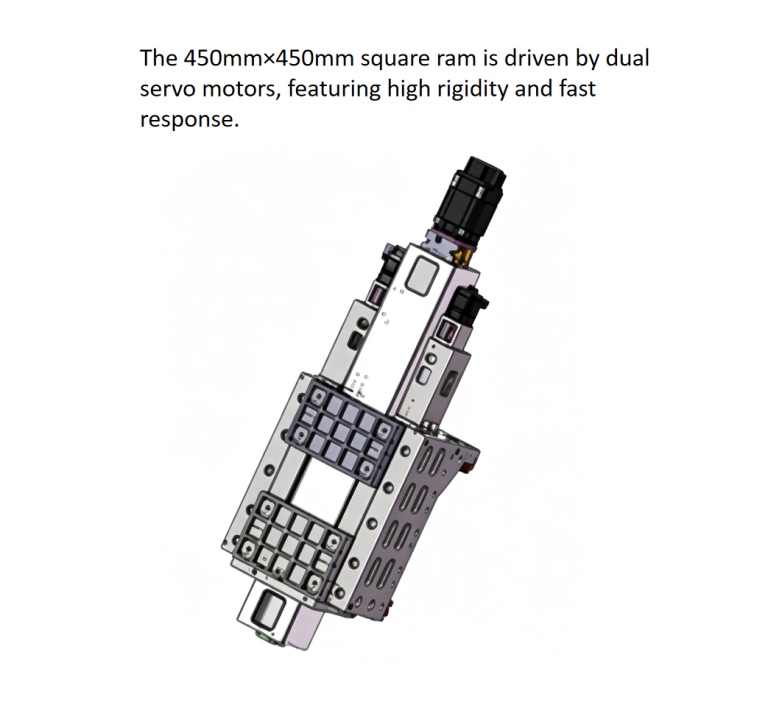

Ram Form/Section Size	mm	Square ram 400400 / 450450	T-type guide rail / Square ram 400400 / 450450	Square ram 400400 / 450450	Square ram 400400 / 450450	Square ram 400400 / 450450	Square ram 400400 / 450450	Square ram 450*450
Max. Spindle Speed	rpm	4000	6000/4000	4000	3500	3500	3500	3500
Spindle Power	kW	22/26	22/26	22/26	22/26(30/37)	22/26(30/37)	22/26(30/37)	30/36
Spindle Taper	–	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Rapid Traverse Speed	m/min	10/12/10	10/12/10	10/12/10	8/10/10	8/10/10	8/10/10	8/10/10
Cutting Feed Rate	m/min	5/5/5	5/5/5	5/5/5	5/5/5	5/5/5	5/5/5	5/5/5
Tool Magazine Capacity (Optional)	T	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60	24/32/40/60
Max. Tool Diameter (Full/Empty)	mm	φ125/230	φ125/230	φ125/230	φ125/230	φ125/230	φ125/230	φ125/230
Max. Tool Length	mm	300	300	300	300	300	300	300
Max. Tool Weight	kg	18	15	18	15	15	15	18
Total Power Supply Capacity	kVA	55	65	75	85	90	110	100
Machine Overall Dimension (LWH)	mm	1100070006200	1300070006200	1900070006200	1900075006800	1700080006800	2100080006800	1900084006800
Standard CNC System	–	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF	SIEMENS 828D / FANUC 0i-MF
