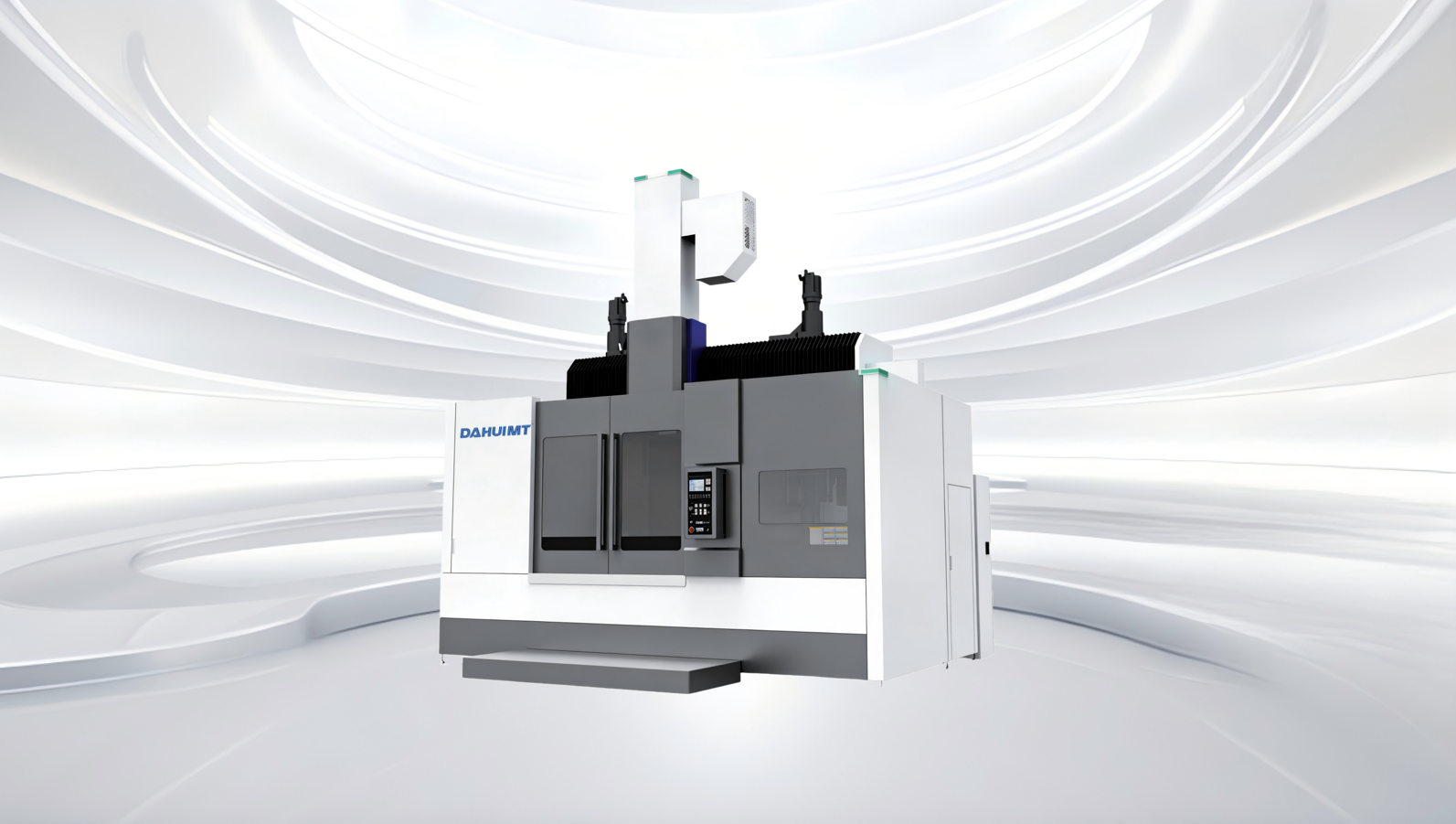

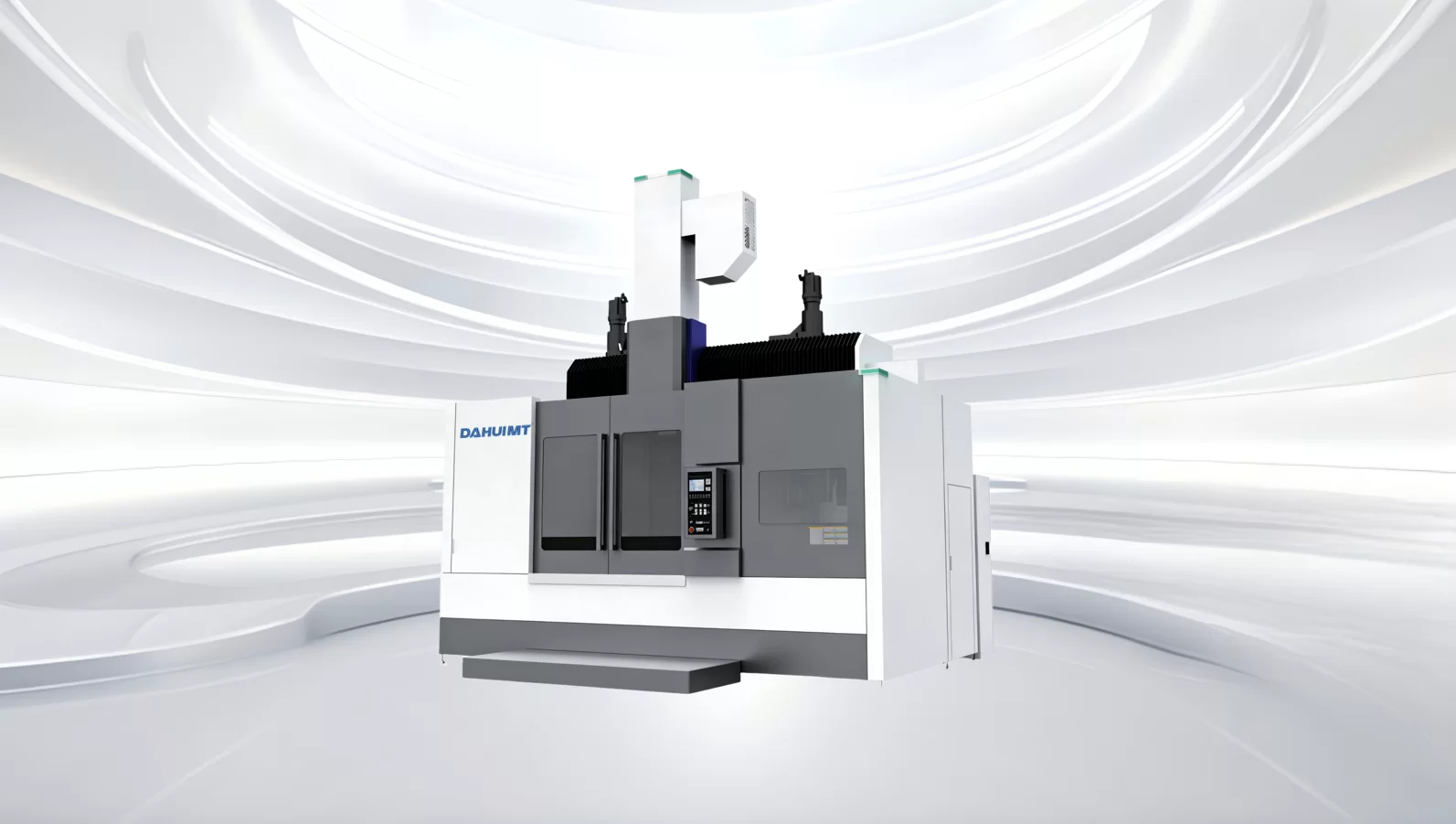

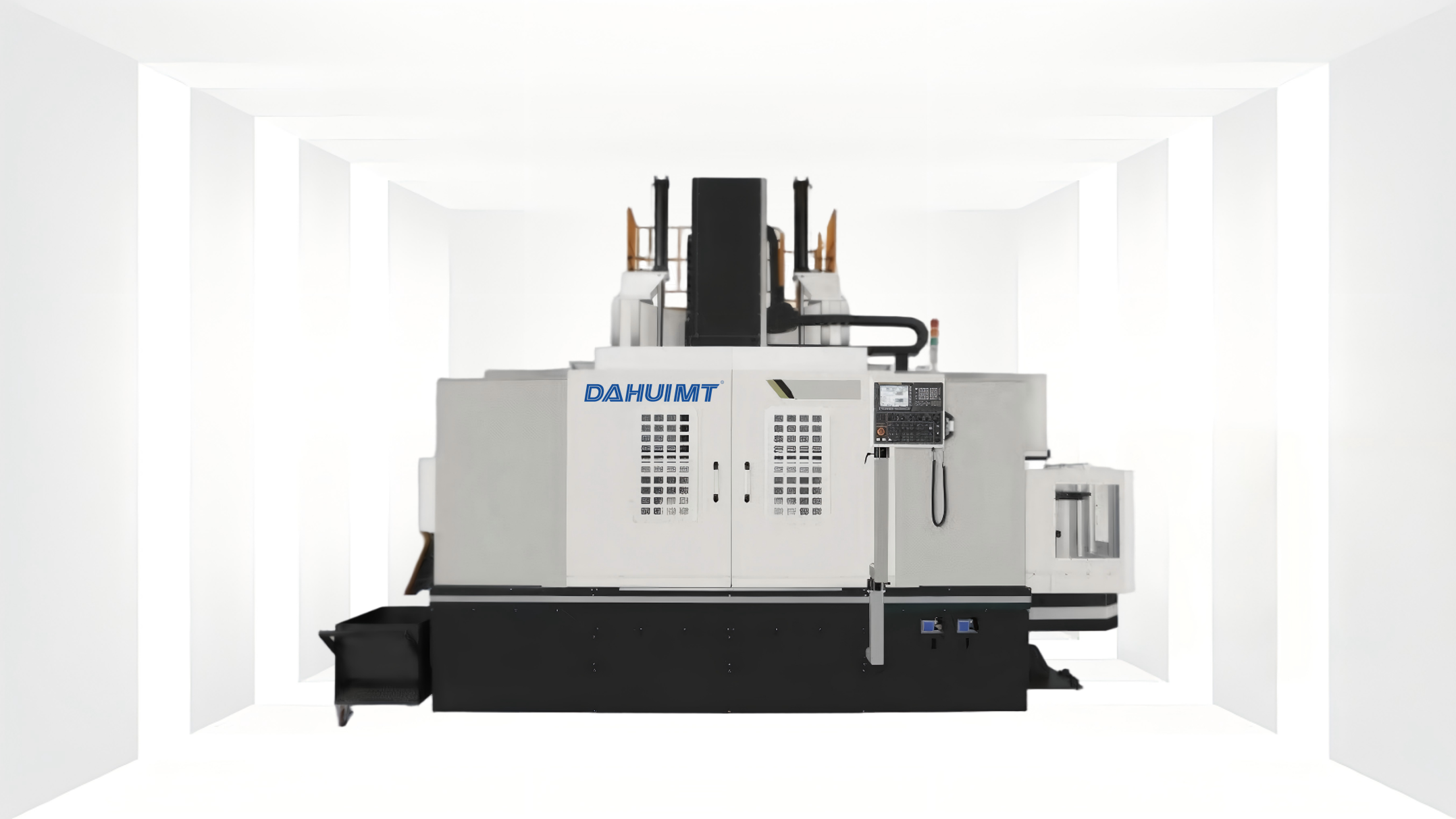

VTC Series

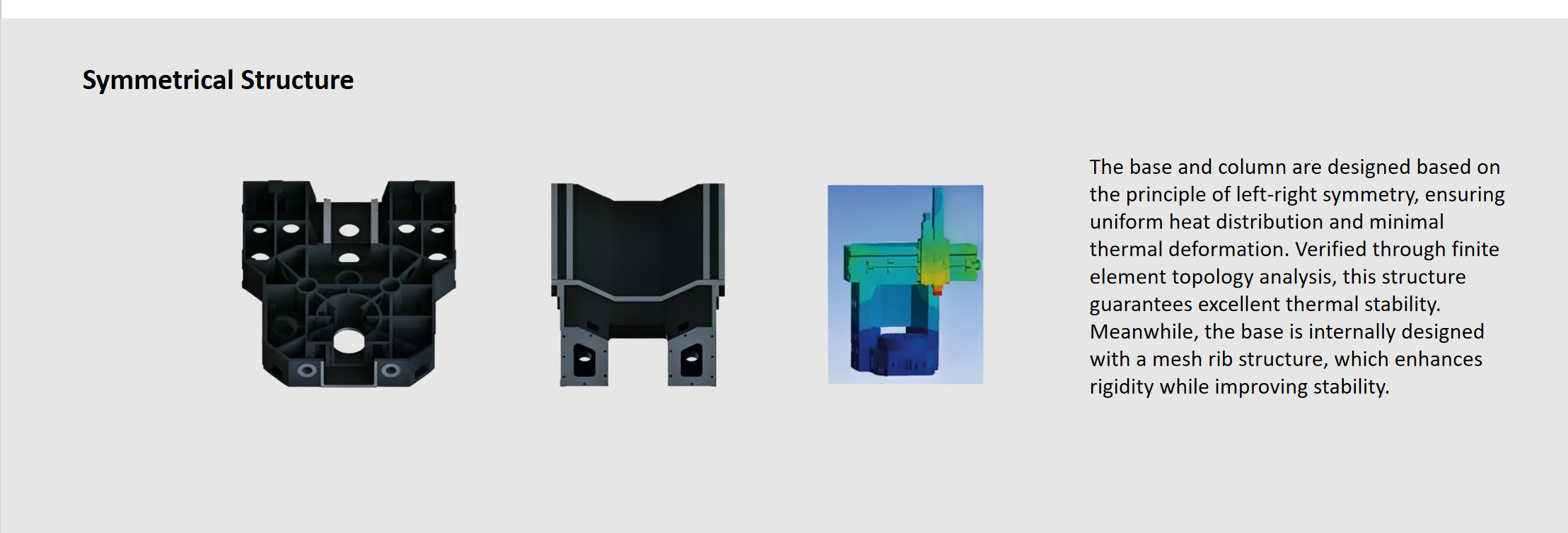

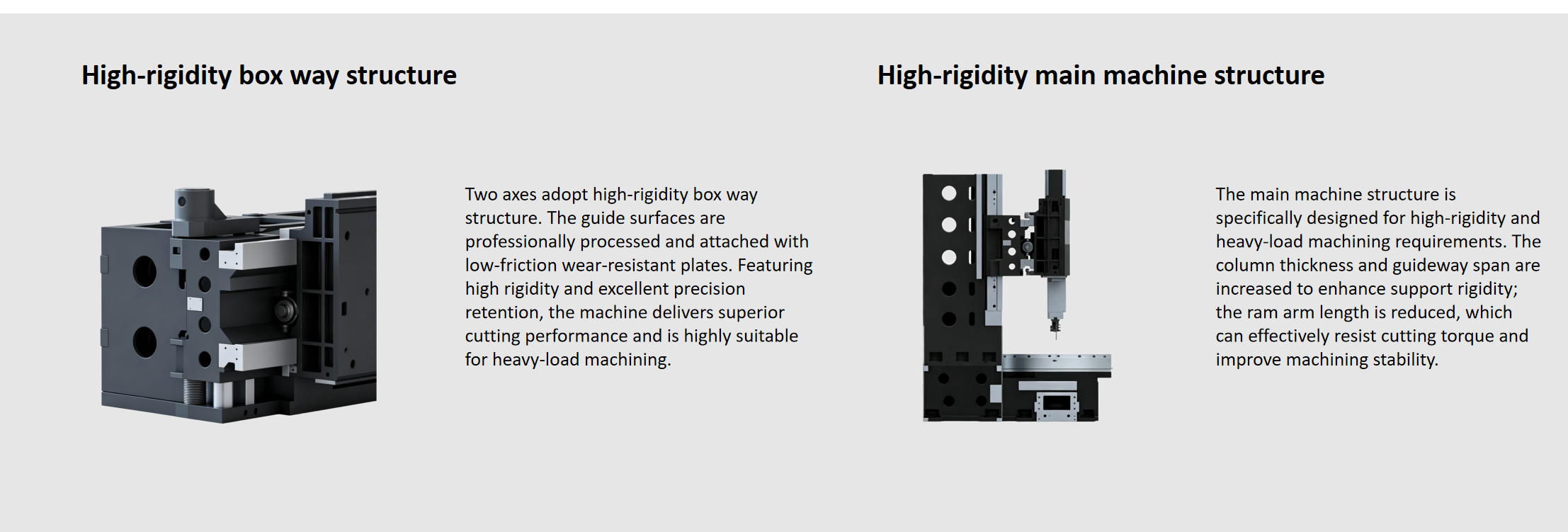

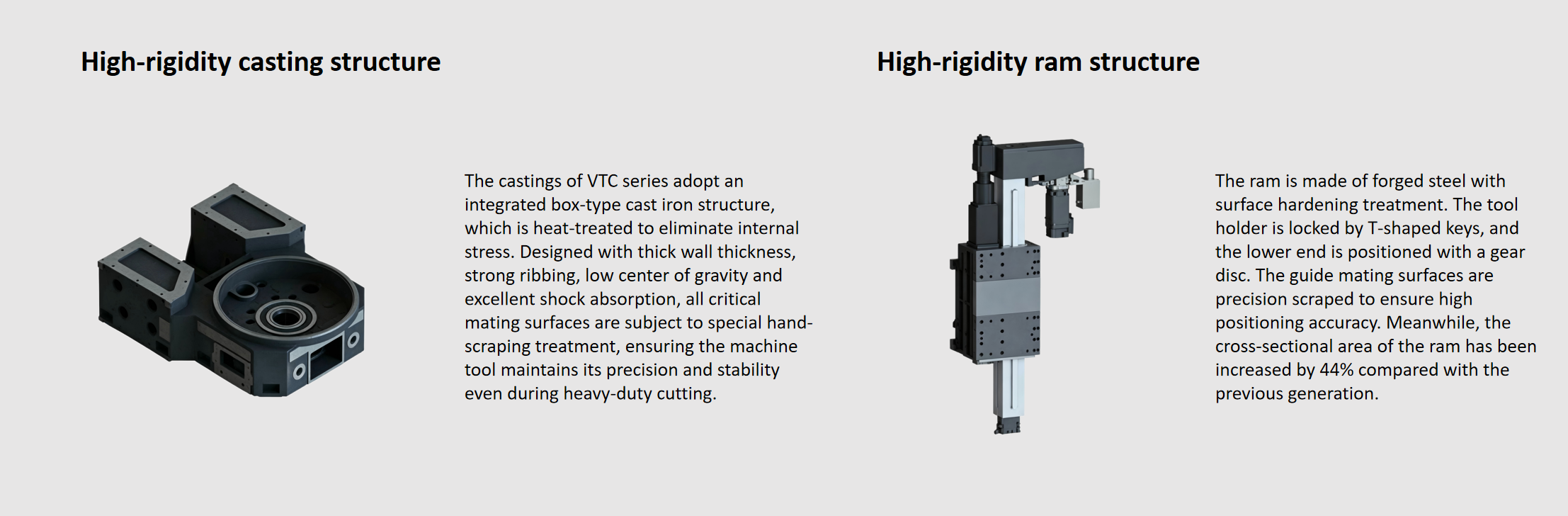

VTC cover models from 10080 to 500160 to meet diverse industrial needs. Built with one‑piece box castings, hardened structures, and stress relief, the machines deliver exceptional rigidity, shock absorption, and long‑term accuracy. Key features include heavy‑duty box ways, enlarged columns, widened guideways, and high‑precision cross‑roller bearings for stable heavy cutting.

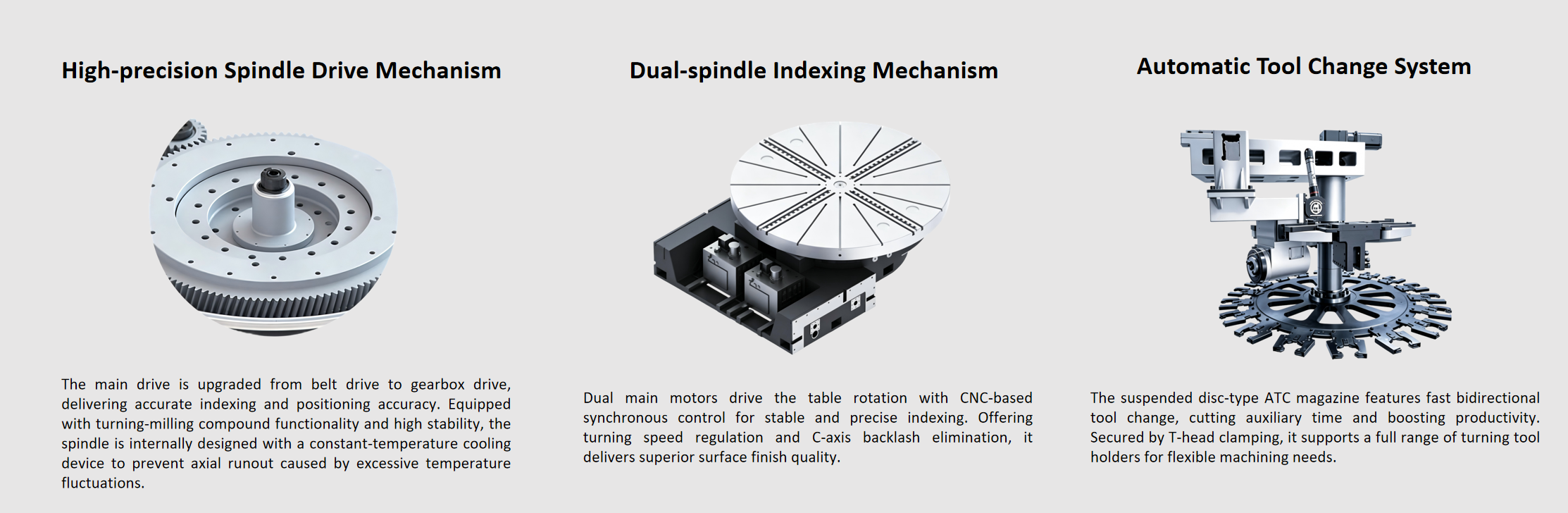

The series adopts high‑torque table drives, dual‑motor C‑axis synchronous control, and automatic tool changers to greatly improve efficiency. Intelligent functions such as graphical programming, closed‑loop switching, and power‑failure protection enhance safety and usability. With modular design, ergonomic operation, and easy installation, VTC lathes are widely used in aerospace, wind power, new energy, automotive, bearings, pumps, and valves, providing reliable, high‑efficiency turnkey solutions for heavy workpiece machining.

Machining Range

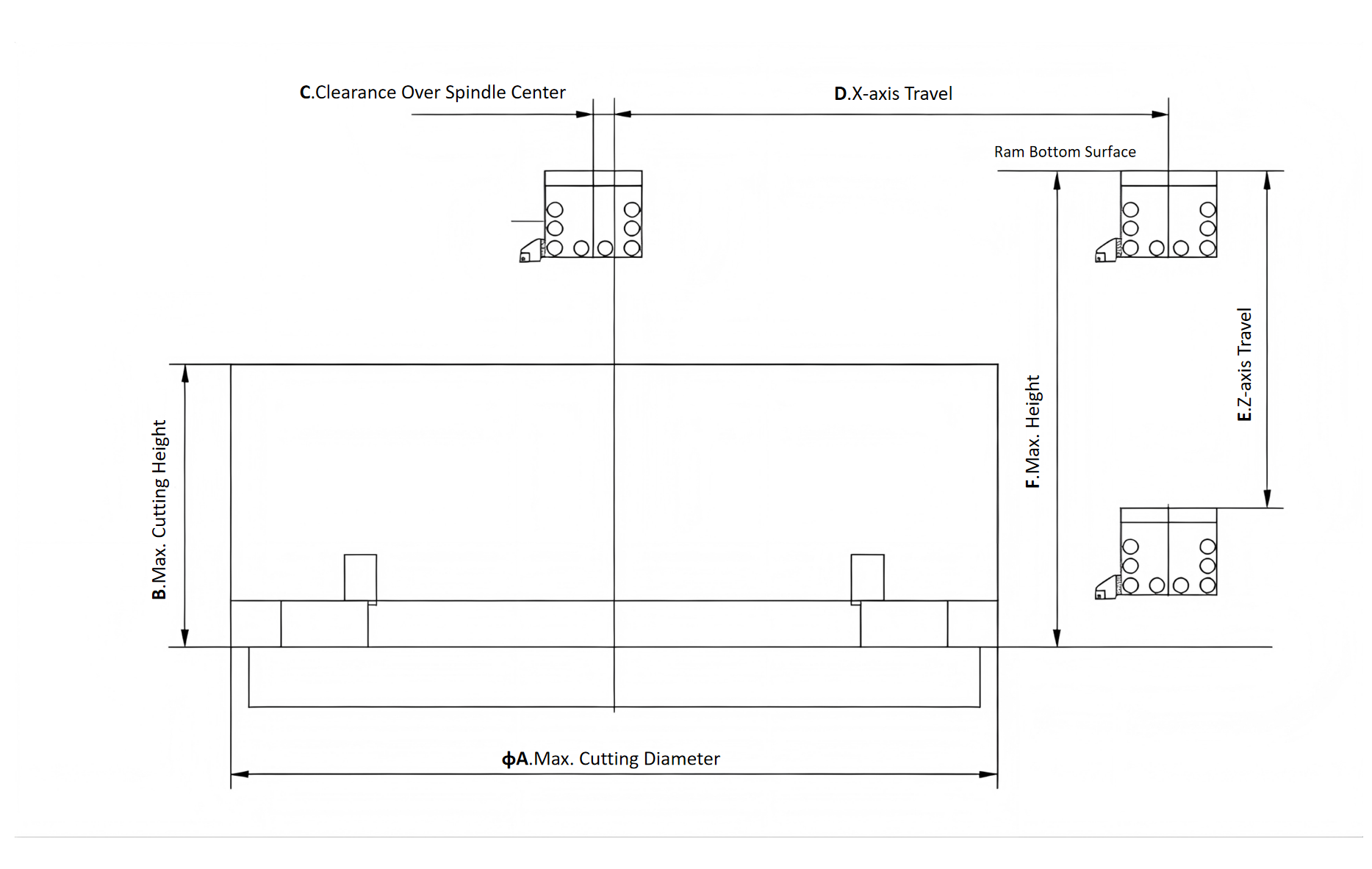

Model	Unit	A (Max. Turning Diameter)	B (Max. Turning Height)	C (Clearance Over Spindle Center)	D (X-axis Travel)	E (Z-axis Travel)	F (Max. Height from Ram Bottom to Table)
VTC10080	mm	1100	800	50 (Hm 400)	750	800	979
VTC125100	mm	1400	1000	50 (Hm 600)	875	1000	1179
VTC160100	mm	1800	1200	50 (Hm 800)	1055	1000	1495
VTC200140	mm	2300	1600	50 (Hm 1025)	1400	1400	2200

Clamping Range

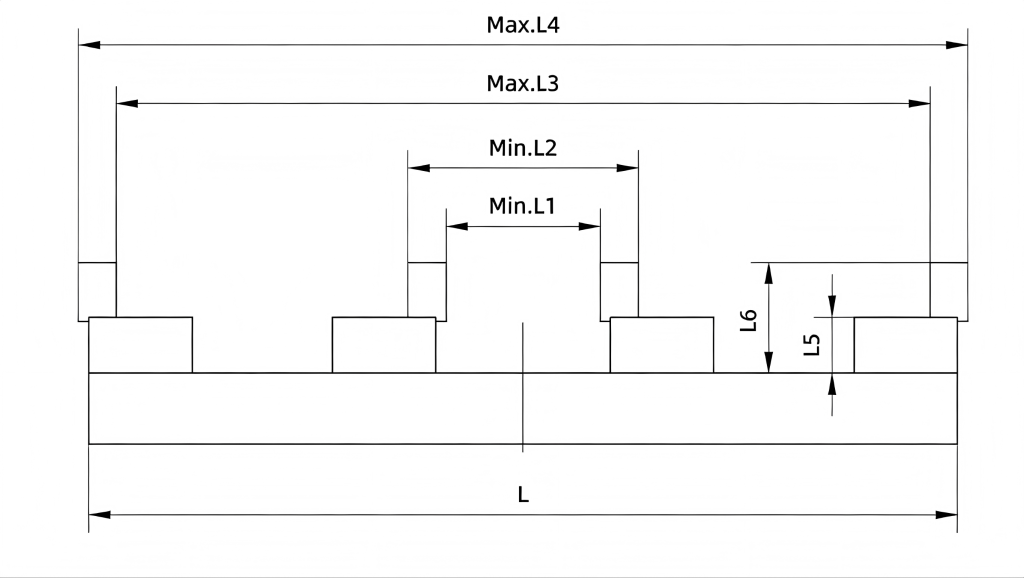

Model	Unit	L	L1	L2	L3	L4	L5	L6
VTC10080	mm	1000	200	350	910	1050	97	135
VTC125100	mm	1250	300	350	1060	1200	97	135
VTC160100	mm	1600	300	350	1460	1590	120	243
VTC200140	mm	2000	560	710	1760	1950	115	175

Machine Tool Overall Dimensions

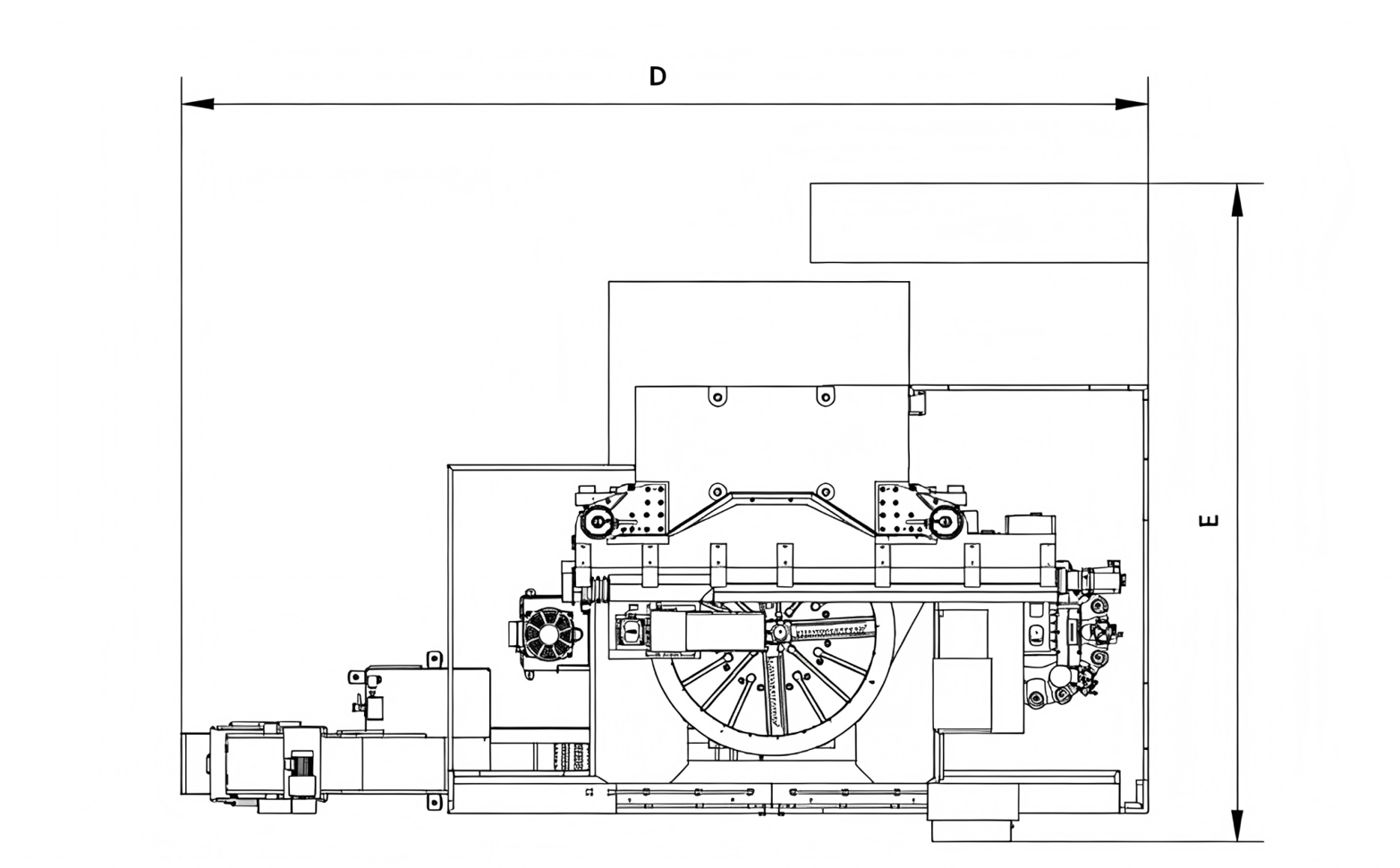

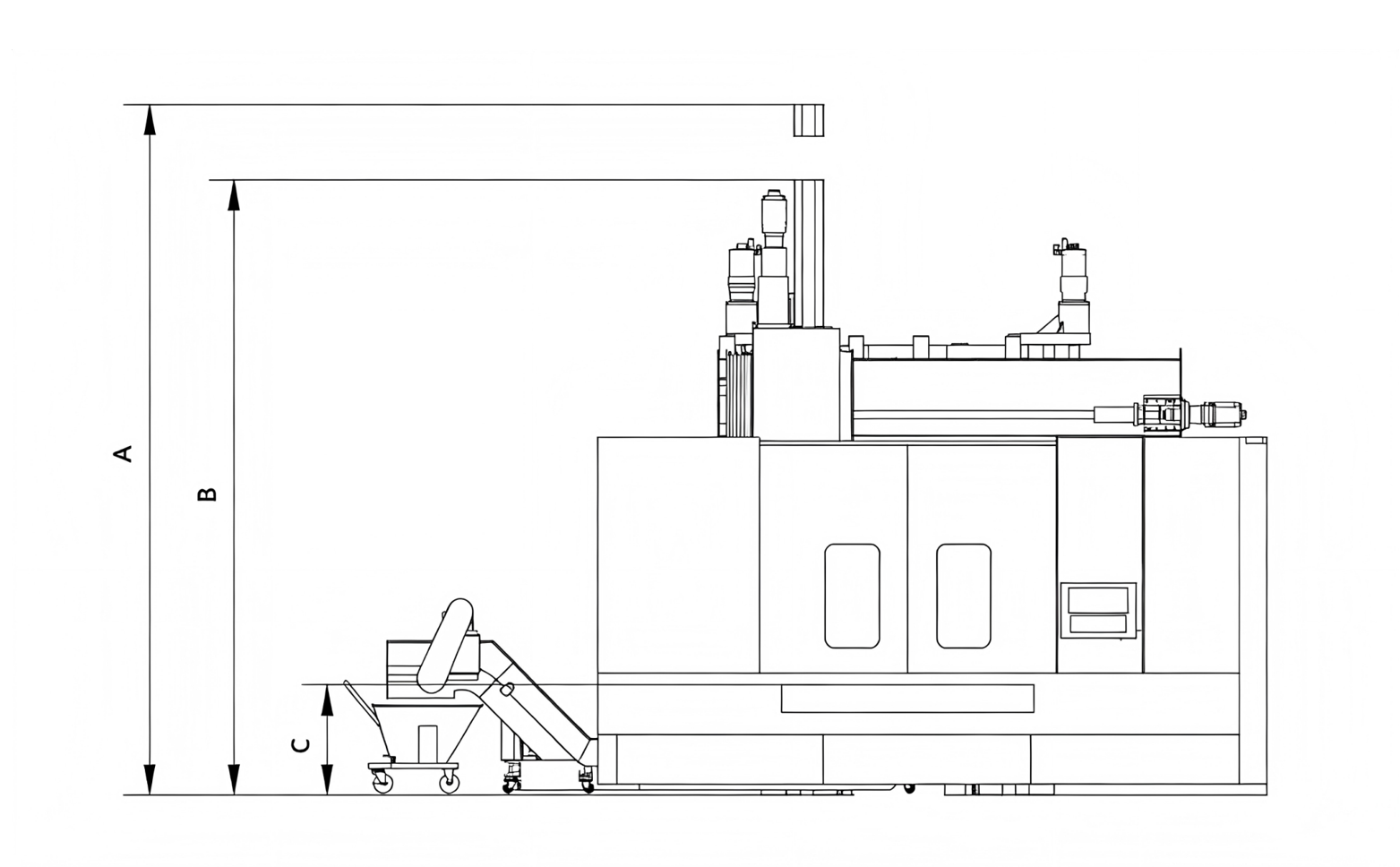

Model	Unit	A	B	C	D	E
VTC10080	mm	4622	4295	1039	7452	5509
VTC125100	mm	4822	4495	1039	7452	5509
VTC160100	mm	5600	4800	1090	8045	5509
VTC200140	mm	6100	7400	1350	11100	8000

STANDARD CONFIGURATION	OPTIONAL CONFIGURATION
SIEMENS 828D CNC System	FANUC CNC System
Chip Bin	Oil Mist Collector
Manual 4-Jaw Chuck	Linear Scale (Grating Ruler)
Side Chip Flushing	High-Pressure Water Tank
Water Gun	Chip Conveyor
Cross Roller Bearing	Magnetic Chuck
Oil Chiller	Full Enclosure
Lubrication System	Heightened Column
Hydraulic System	Tool Setting Probe
Safety Signs	Workpiece Probe
Tri-Color Indicator Light	Pneumatic Door
Work Light	Oil-Water Separator
Door Lock	Tool Magazine (ATC)
Semi-Enclosed Protection

Turning Technical Parameters

Item	Unit	VTC10080Q/H	VTC125100Q/H	VTC160100Q/H	VTC200140H	VTC250140H	VTC350140H	VTC500160H
Main Parameters
Table Diameter	mm	Φ1000	Φ1250	Φ1600	Φ2000	Φ2500	Φ3500	Φ4500
Maximum Swing Diameter	mm	Φ1400	Φ1600	Φ2000	Φ2500	Φ3000	Φ4000	Φ5000
Maximum Turning Diameter	mm	Φ1100	Φ1400	Φ1800	Φ2300	Φ2800	Φ3800	Φ5000
Maximum Workpiece Height	mm	800	1000	1200	1600	2000	2000	3000
Maximum Table Torque	N·m	14337/14472	15480/15626	22960	49800	69000	82600	125000
Maximum Table Speed	r/min	400/600	370/400	254/300	150	120	60	40
Main Motor Rated Power	kW	37/41	37/41	37/41	58	58	58	81
Ram
Ram Cross-Section Size	mm×mm	200×200	200×200	240×240	240×240	280×280	280×280	400×400
Crossrail
Crossrail Lifting Stroke	mm	Fixed	Fixed	800	1400	1400	1800	2000
Two Axes
X-axis Travel	mm	-50~+750	-50~+875	-50~+1055	-50~+1400	-50~+1540	-50~+2040	-50~+2850
Z-axis Travel	mm	800	1000	1000	1400	1400	1400	1600
X-axis Rapid Traverse Speed	m/min	12	12	12	10	10	8	6
Z-axis Rapid Traverse Speed	m/min	8/10	8/10	10	8	8	8	6
Tool Holder
Turning Tool Holder Size	mm	40×40	40×40	40×40	40×40	40×40	40×40	50×50
Positioning Accuracy
X-axis	mm/1000mm	0.025	0.025	0.03/0.025	0.025	0.025	0.025	0.03
Z-axis	mm/1000mm	0.025	0.025	0.03/0.025	0.025	0.025	0.025	0.03
Repeat Positioning Accuracy
X-axis	mm	0.01/0.008	0.01/0.008	0.01/0.008	0.01	0.01	0.01	0.013
Z-axis	mm	0.01/0.008	0.01/0.008	0.01/0.008	0.01	0.01	0.01	0.013
Machine Tool Main Unit Weight	kg	23000	25000	26000	45000	60500	97000	110000

Turning & Milling Technical Parameters

Item	Unit	VTC10080Hm	VTC125100Hm	VTC160100Hm	VTC200140Hm	VTC250140Hm	VTC350140Hm	VTC500160Hm
Main Parameters
Table Diameter	mm	Φ1000	Φ1250	Φ1600	Φ2000	Φ2500	Φ3500	Φ4500
Maximum Swing Diameter	mm	Φ1400	Φ1600	Φ2000	Φ2500	Φ3000	Φ4000	Φ5000
Maximum Turning Diameter	mm	Φ1100	Φ1400	Φ1800	Φ2300	Φ2800	Φ3800	Φ5000
Maximum Workpiece Height	mm	800	1000	1200	1600	2000	2000	3000
Maximum Table Torque	N·m	14472	15626	22960	49800	69000	82600	125000
Maximum Table Speed	r/min	600	400	300	150	120	80	40
Rated Power of Turning Main Motor	kW	41	41	41	58	58	58	81
Rated Power of Milling Spindle Motor	kW	20.5	20.5	20.5	26.5	26.5	26.5	81
Rated Power of Milling Main Spindle	kW	10	10	10	29	29	29	51
C-axis Speed Range	rpm	0.01-7	0.01-7	0.01-6	0.01-5	0.01-5	0.01-4	0.01-4
Maximum Speed of Milling Spindle	rpm	1800	1800	1800	1800	1800	1800	1500
Maximum Torque of Milling Spindle	N·m	407	407	407	1000	1000	1000	2400
Ram
Ram Cross-Section Size	mm×mm	240×240	240×240	240×240	280×280	280×280	280×280	400×400
Crossrail
Crossrail Lifting Stroke	mm	Fixed	Fixed	800	1400	1400	1800	2000
Two Axes
X-axis Travel	mm	-400~+700	-600~+875	-800~+1055	-1025~+1400	-1600~+2400	-2060~+2900	-2470~+3400
Z-axis Travel	mm	800	1000	1000	1400	1400	1400	1600
X-axis Rapid Traverse Speed	m/min	12	16	12	10	10	8	6
Z-axis Rapid Traverse Speed	m/min	10	10	10	8	8	8	6
Cutting
Cutting Feed Speed Range	mm/min	1-3000	1-3000	1-3000	1-3000	1-3000	1-3000	1-3000
Tool Magazine
Tool Magazine Stations	–	16	16	16	12	12	12	12
Positioning Accuracy
X-axis	mm/1000mm	0.02	0.02	0.02	0.02	0.02	0.02	0.025
Z-axis	mm/1000mm	0.02	0.02	0.02	0.02	0.02	0.02	0.025
C-axis	“	15″/360°	15″/360°	15″/360°	15″/360°	15″/360°	15″/360°	15″/360°
Repeat Positioning Accuracy
X-axis	mm	0.008	0.008	0.008	0.008	0.008	0.008	0.01
Z-axis	mm	0.008	0.008	0.008	0.008	0.008	0.008	0.01
C-axis	“	8	8	8	8	8	8	8
Machine Tool Main Unit Weight	kg	23000	25000	27000	47000	61500	98500	120000
