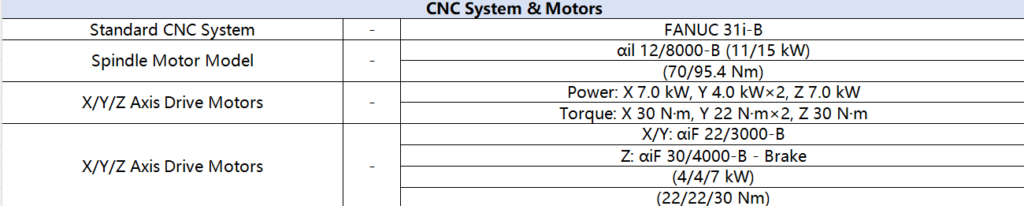

·FANUC 31i-B Control System, standard RS-232 interface and DNC function

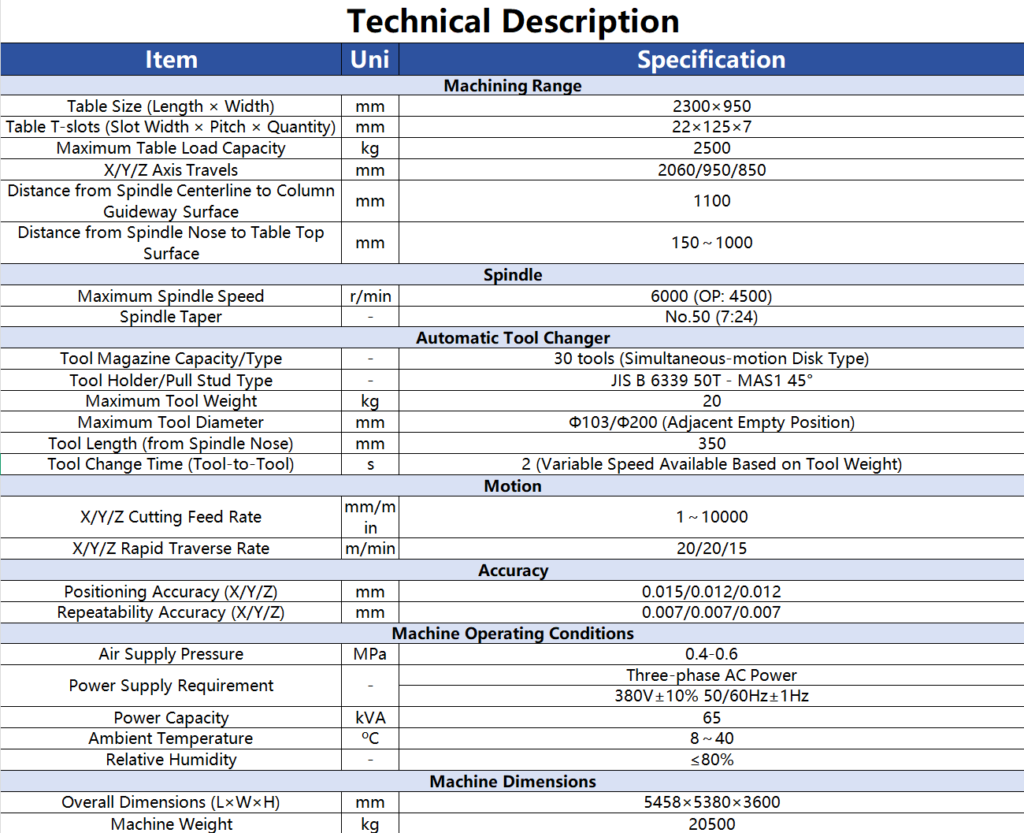

·Large machining range with X/Y/Z axis travels: 2060, 950, 850 mm
·High-strength cast iron bed
·Three axes equipped with sliding guideways
·Built-in triple chip augers (Users shall perform chip breaking operation when chip length exceeds 100mm)
·High-speed geared spindle with two internal gear-shifting levels (optional electric spindle)
·Rigid tapping
·Simultaneous-motion disk-type ATC tool magazine (30 tools capacity)
·Advanced high-precision hollow cooled ball screw technology for enhanced machining accuracy
·Advanced temperature compensation technology for improved machining precision
·Rapid traverse rate: X – 20 m/min, Y – 20 m/min, Z – 15 m/min
·The machine’s robotic arm achieves fast tool change (tool change time: 2.0 seconds) via mechanical linkage that controls spindle clamping and unclamping during the tool change process
