DVF Series

DVF 850 / DVF 1500 / DVF 1800

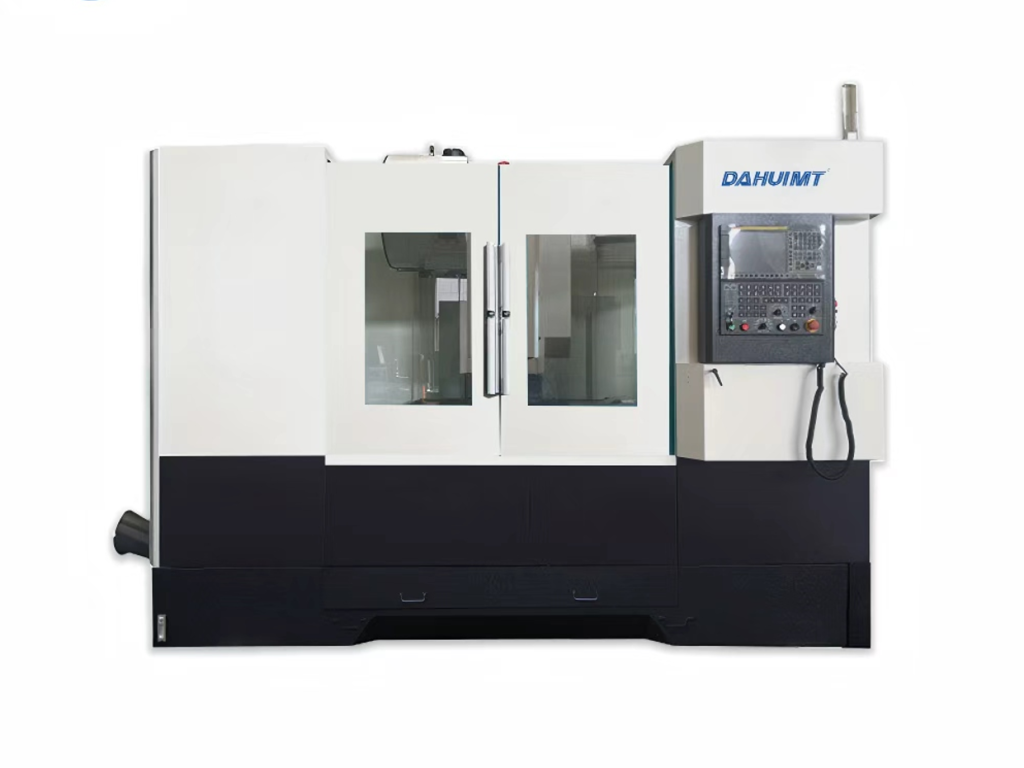

The DVF series, including DVF850, DVF1500 and DVF1800 vertical machining centers, are high-performance precision machining equipment engineered for diverse industrial applications, from small precision parts to large heavy-duty workpieces processing. All models adopt high-strength cast iron bed structures optimized via finite element and dynamic analysis, ensuring exceptional rigidity and stability for heavy cutting and high-precision machining. Equipped with mainstream FANUC 0i-MF PLUS CNC systems (Siemens 828D optional) and 10.4″ color LCD displays, they feature user-friendly operation and strong compatibility.

Selling Points

Advanced FANUC 0i-MF PLUS CNC system (Siemens 828D optional) with 10.4″ color display, USB and Ethernet connectivity

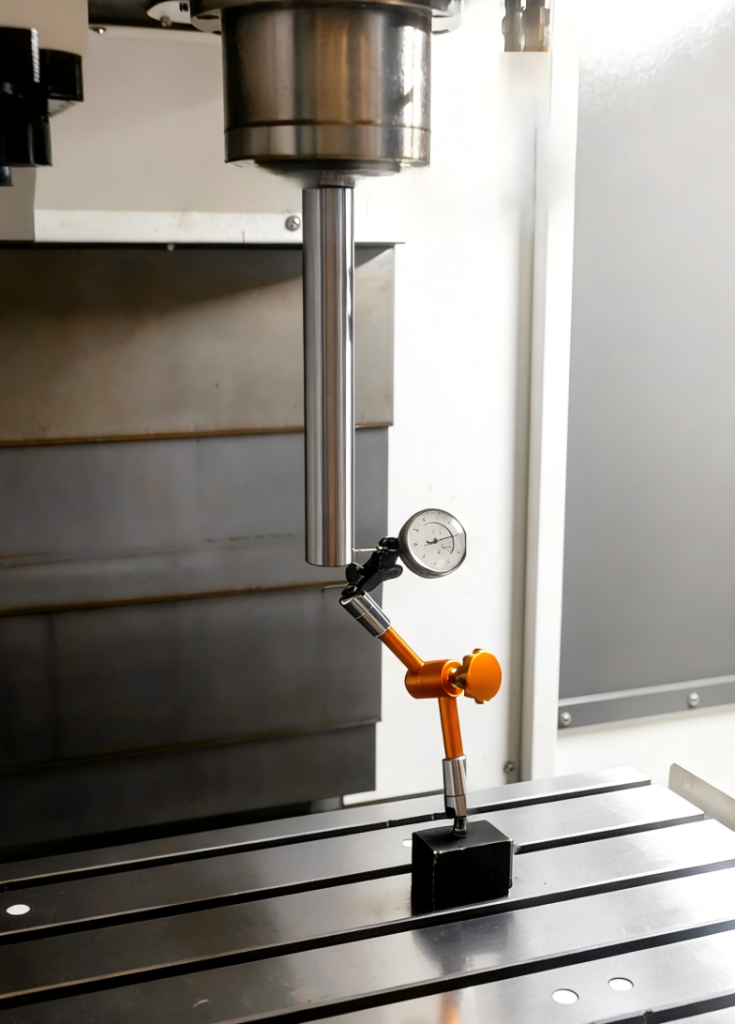

High-precision machining with pre-stretched ball screws and laser pitch compensation (positioning accuracy ≤0.019mm, repeat accuracy ≤0.008mm)
High-efficiency operation: Spindle speed up to 8000rpm (6000rpm for large models), rapid traverse up to 24m/min, tool change time as fast as 2.5s

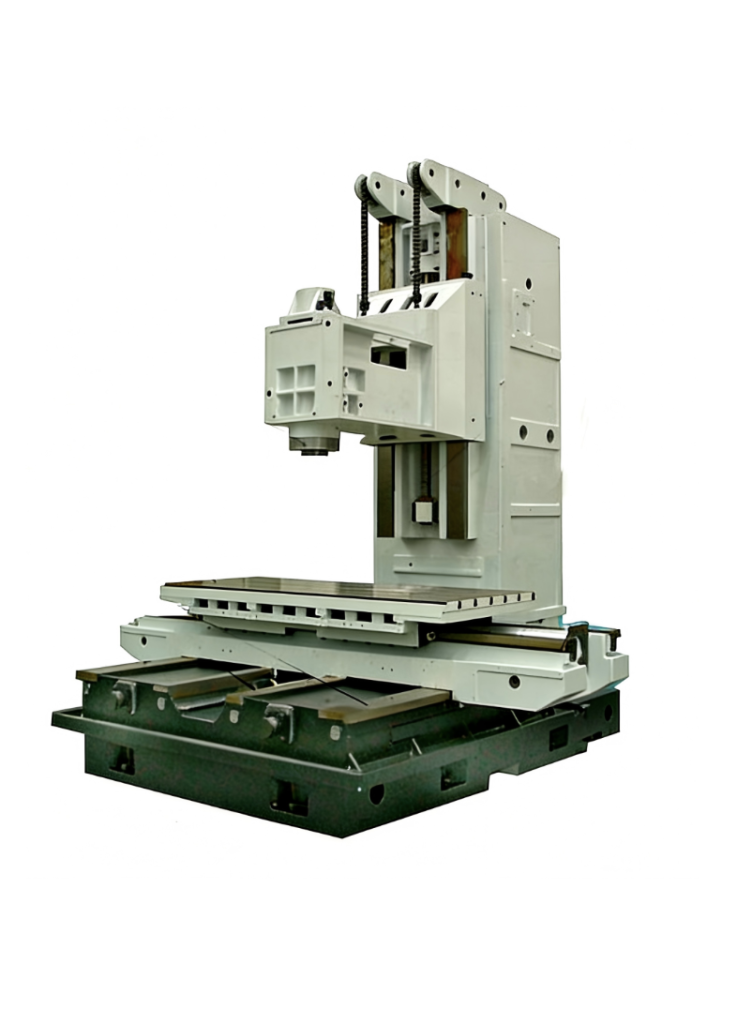

Robust structure: High-strength resin sand castings with finite element & dynamic analysis for superior rigidity and heavy load-bearing capacity

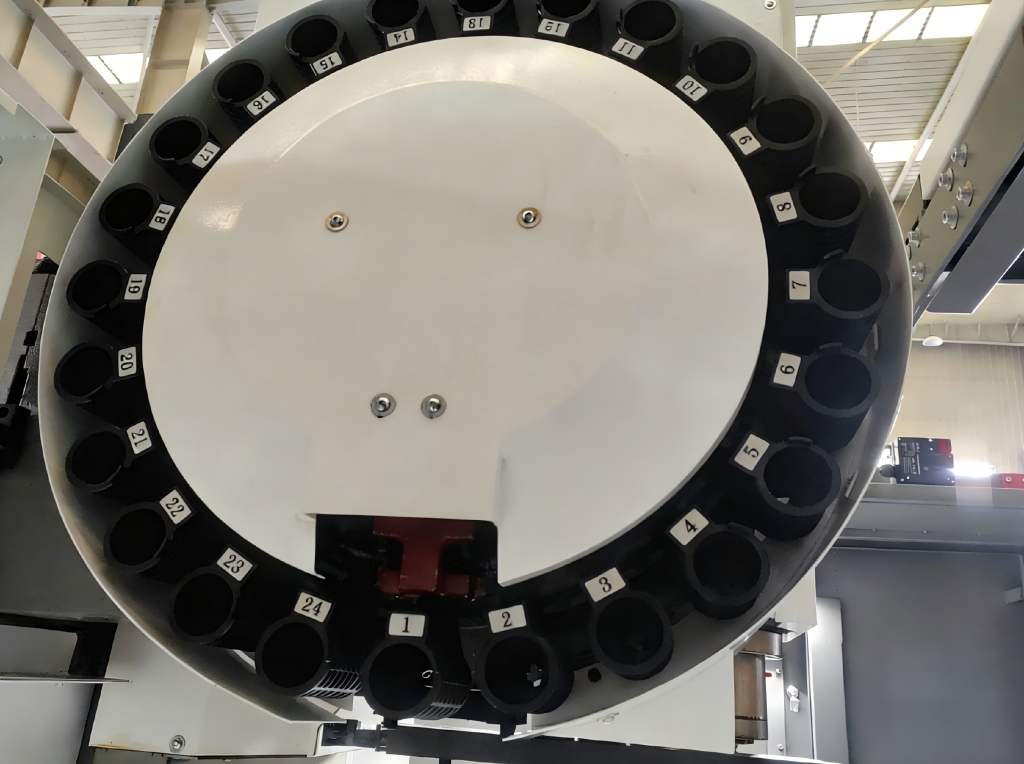

Smooth tool change: 24-tool arm-type ATC with cam-driven mechanism for stable and fast automatic tool change
Comprehensive protection: Full-enclosed shield, spindle air curtain dust prevention, safety interlocks and sealed guide rail protection
Reliable components: Key parts from FANUC, NSK, THK, NACHI and other renowned international brands

Main Configurations

Standard

FANUC 0i-MF PLUS CNC system + USB/DNC/Ethernet
Belt-driven spindle (8000rpm standard, optional 12000rpm) or gear-driven spindle
24-tool arm-type ATC + chain-type chip conveyor
Rigid tapping + precision hand-scraped guideways
Pre-stretched ball screws + spindle oil cooling system

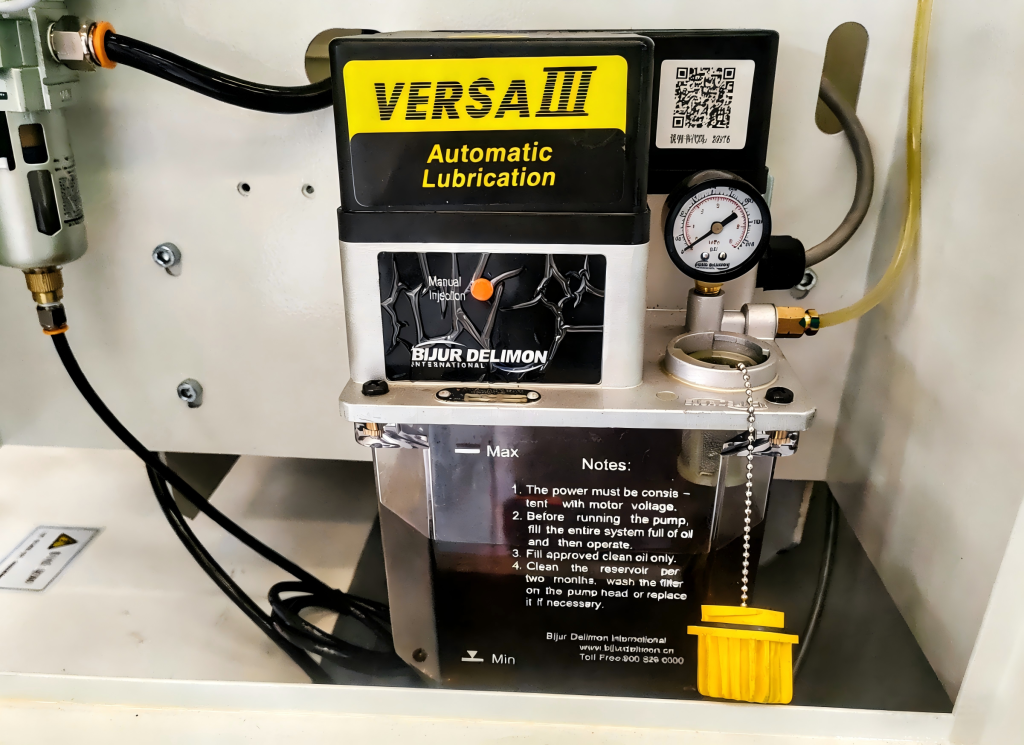

Full-enclosed shield + automatic centralized lubrication
Heavy-duty worktable + safety interlock system

Optional

BRT turntable (0.001° high-precision indexing)
30/40/60-tool ATC + lifting chip conveyor
Through-spindle coolant (2MPa/7MPa) + spray cooling
Electrical cabinet air conditioner + cleaning guns (air/water)
Workpiece automatic measuring system (Renishaw OMP60)
X/Y/Z axis grating ruler (Heidenhain) + tool breakage detection
4th/5th axis rotary table + tailstock
Spindle oil chiller + screw nut cooling system
Automatic tool length measurement system
Mist collector + oil-water separator

Item	Unit	DVF850	DVF1500	DVF1800
Table Size (L×W)	mm	1000×500	1700×800	2000×800
Max. Table Load	kg	500	2500	2500
X/Y/Z Travel	mm	860/510/560	1560×830×790	1880×830×790
Max. Spindle Speed	r/min	8000	6000	6000
Repeat Positioning Accuracy	mm	0.005 (full stroke)	0.008/0.005/0.005 (full stroke)	0.008/0.005/0.005 (full stroke)
Spindle Taper	—	BT40	BT50	BT50
Tool Magazine Capacity	pcs	24	24	24
Standard Controller	—	FANUC 0i-MF PLUS(5)	FANUC 0i-MF PLUS(5)	FANUC 0i-MF PLUS(1)
Way Type	—	3 Hard Guides	3 Hard Guides	3 Hard Guides
Spindle Type	—	Belt drive 8000 rpm	Belt drive 6000 rpm	Belt drive 6000 rpm
