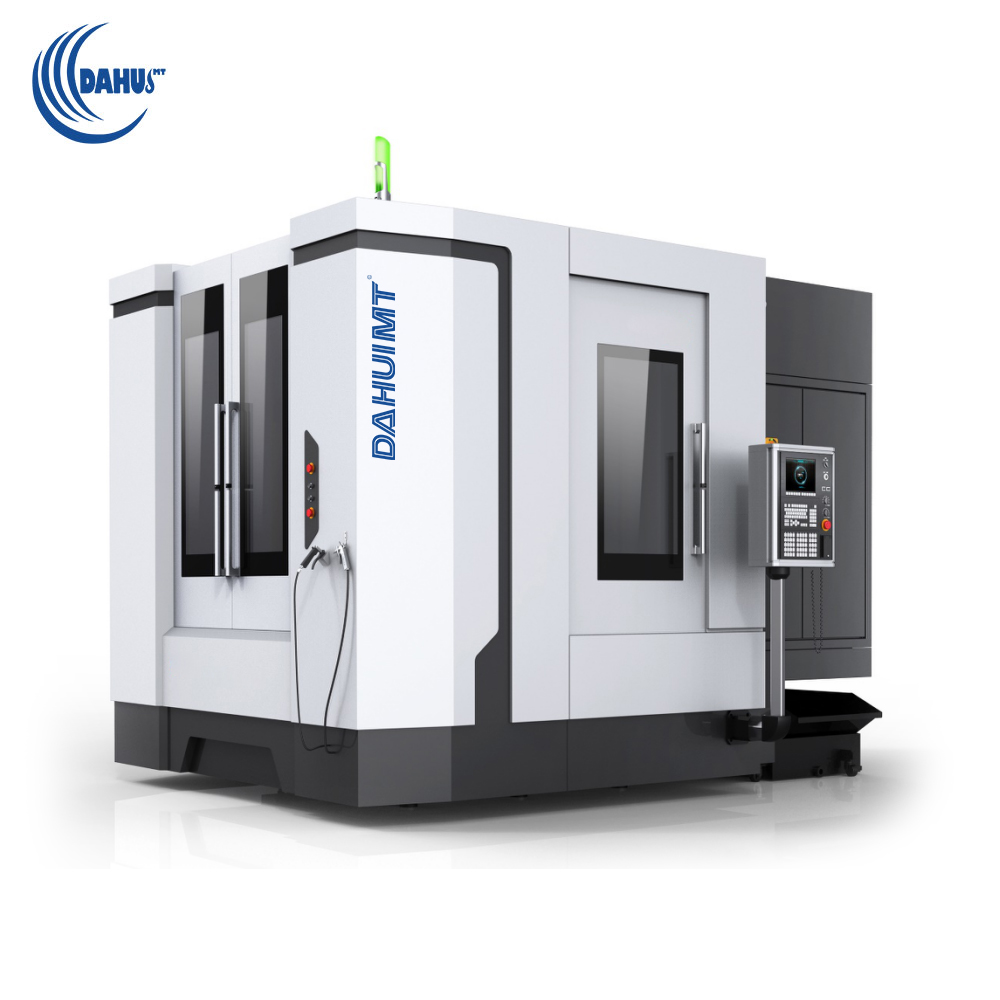

DHL Series

The DHL Series Horizontal Machining Center, features a high-speed linear rolling guideway design. It’s ideal for machining box, shell, and disc parts in mechanical manufacturing. With one-time clamping, it completes milling, boring, drilling, tapping, and other processes. Equipped with ATC, automatic lubrication, cooling system, and MPG, it offers high precision, automation, and reliability.

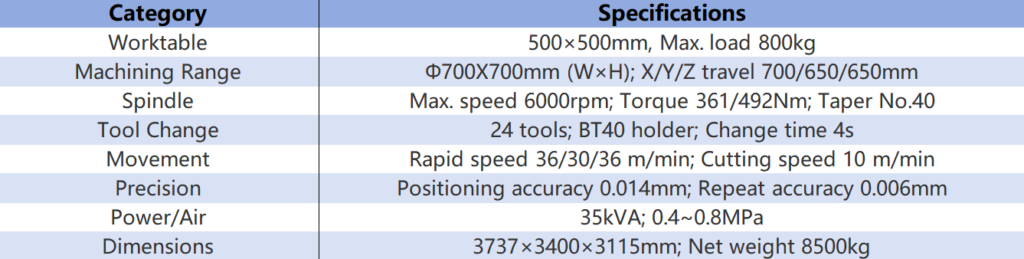

DHL 50

Selling Points

  • Advanced FANUC 0i-MF PLUS CNC system with 10.4″ color display
  • High-strength cast iron structure (bed/column) for strong rigidity
  • 6000rpm gear-driven spindle (two-speed) with 11/15kW power
  • Precise positioning (0.014mm) and rapid traverse (36/30/36 m/min)
  • 24-tool ATC with 4-second tool change time
  • Full-enclosed protection and spiral chip conveyor
  • Reliable components from renowned brands (FANUC, NSK, etc.)



Main Configurations

Standard

  • FANUC 0i-MF(1) PLUS system + USB/DNC
  • 6000rpm BT40 spindle + oil cooling
  • 24-tool ATC + spiral chip conveyor
  • IT turntable (1°indexing)
  • Rigid tapping + full-enclosed shield
  • Automatic lubrication + workpiece cooling

Optional

  • Electrical cabinet air conditioner
  • THK ball screws
  • Through-spindle coolant (2MPa)
  • Workpiece automatic measuring system
  • BRT turntable (0.001°indexing)
  • Cleaning guns (air/water)

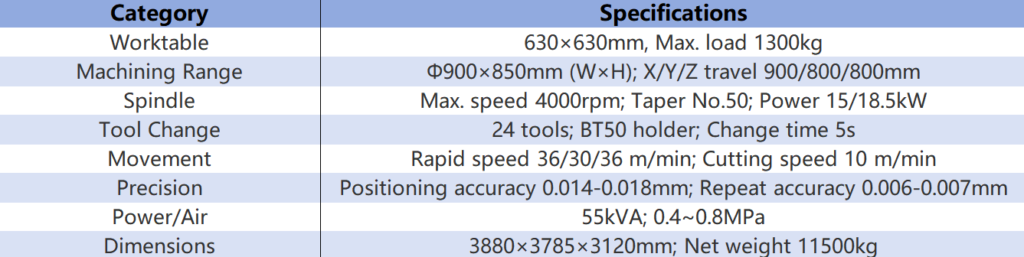

DHL 63

Selling Points

  • FANUC 0i-MF PLUS CNC system with 10.4″ color display
  • High-strength cast iron structure (bed/column) for strong rigidity and load-bearing capacity
  • 4000rpm gear-driven spindle (two-speed) with 15/18.5kW power (BT50 taper)
  • Precise positioning (0.014-0.018mm) and rapid traverse (36/30/36 m/min)
  • 24-tool ATC with 5-second tool change time
  • Full-enclosed protection and spiral chip conveyor
  • Reliable components from top brands (FANUC, NSK, etc.)



Main Configurations

Standard

  • FANUC 0i-MF PLUS system + USB/DNC/RS-232
  • 4000rpm BT50 spindle + automatic lubrication
  • 24-tool ATC + spiral chip conveyor
  • IT turntable (1° indexing)
  • Rigid tapping + full-enclosed shield
  • Workpiece cooling + spindle dust prevention

Optional

  • Electrical cabinet air conditioner
  • THK ball screws
  • Through-spindle coolant (2MPa)
  • Workpiece automatic measuring system
  • BRT turntable (0.001° indexing)
  • Cleaning guns (air/water)
