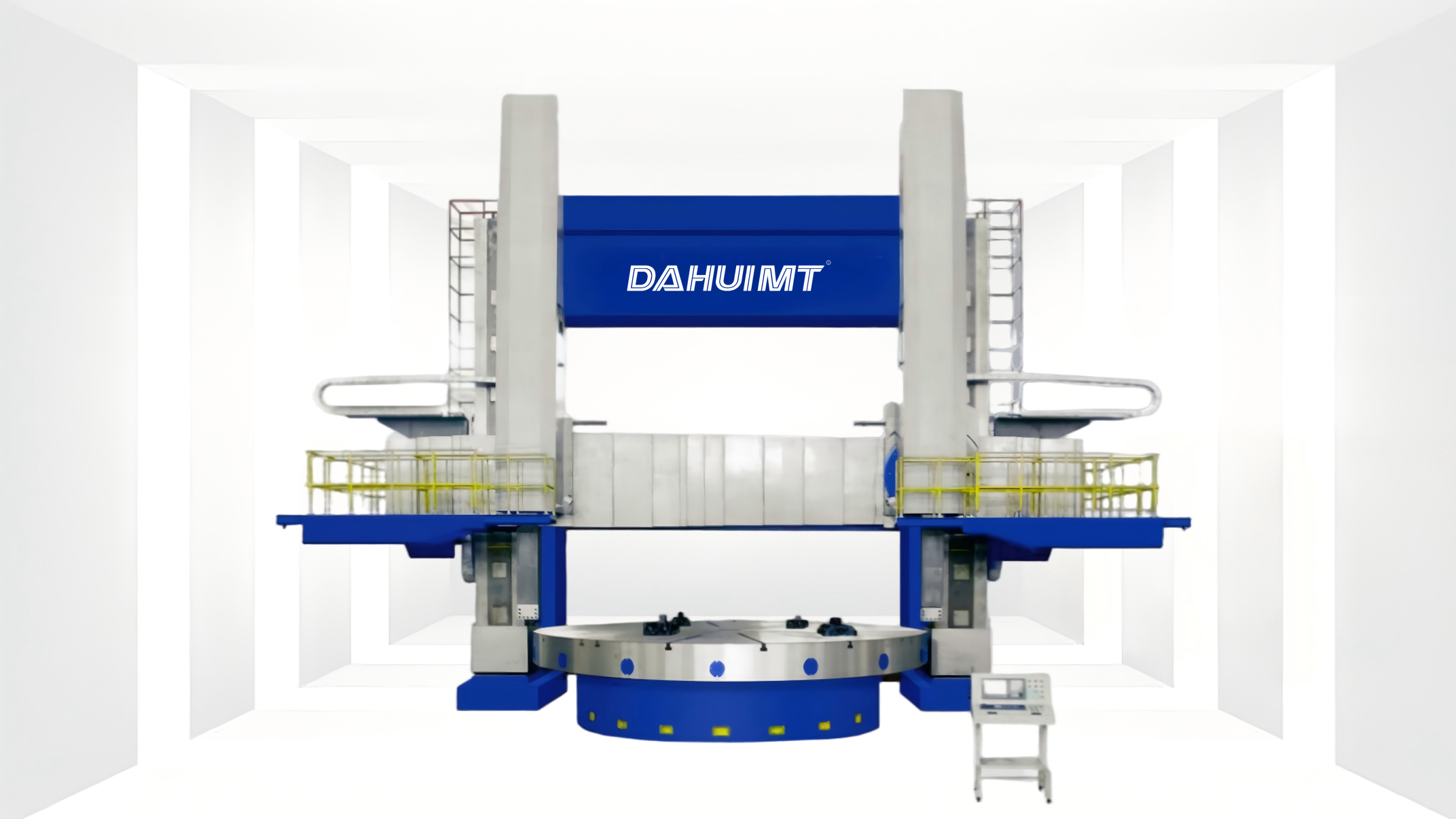

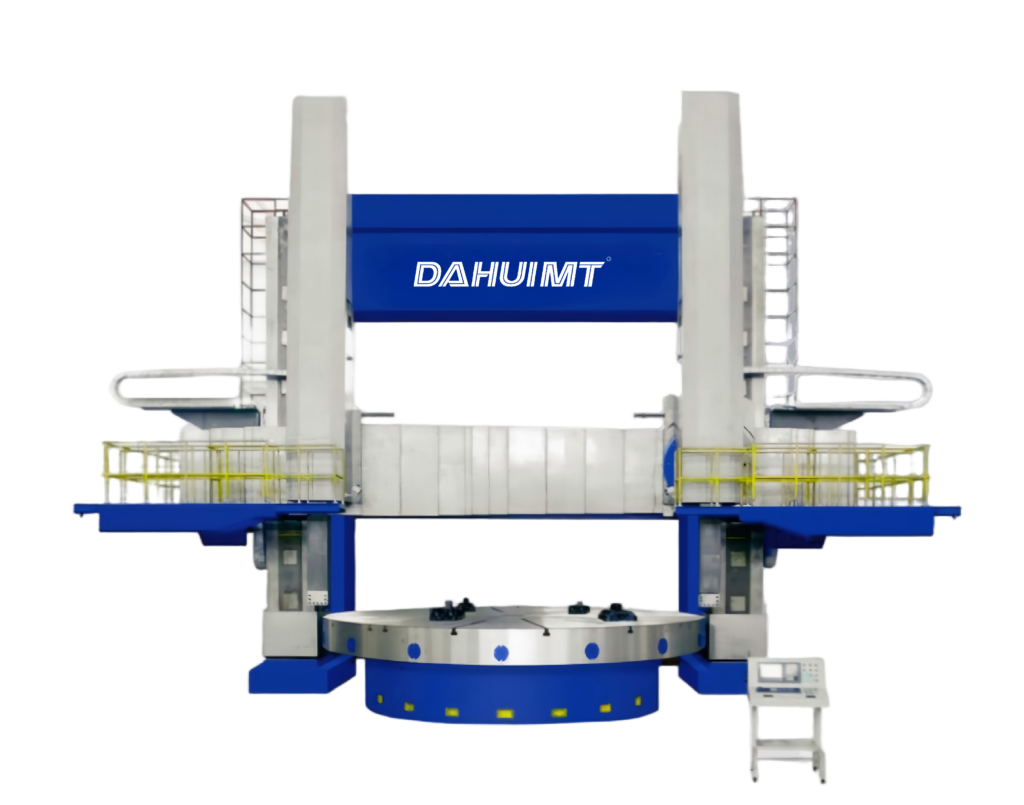

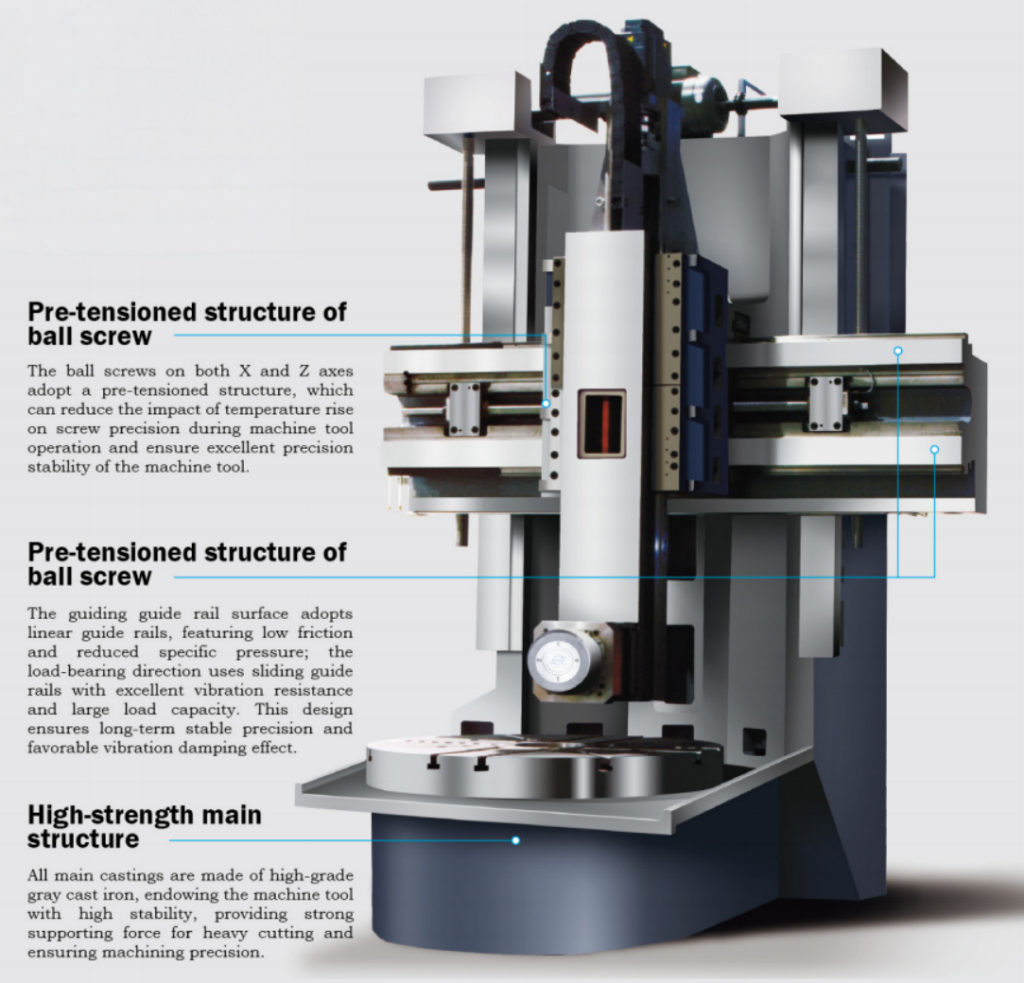

· The main motor adopts a high-torque spindle motor, standard equipped with a German ZF reducer or a self-manufactured 4-speedreduction gearbox, enabling a wide spindle speed adjustment range and heavy cutting with high torque.
· The main column features a special enclosed box-type structure, which enhances the overall stability of the machine tool andprovides strong supporting force for heavy cutting.

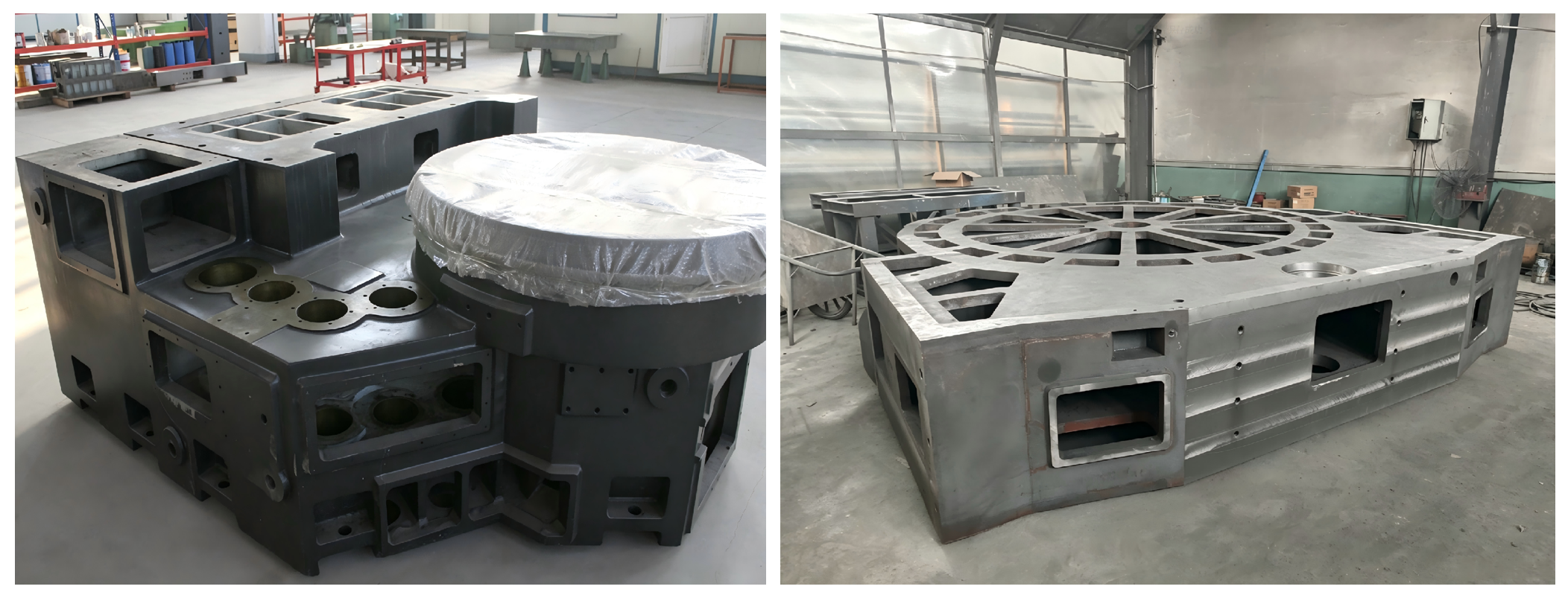

· The main castings are made of high-grade cast iron and subjected to aging treatment to ensure the precision stability of the machine
tool.
· The crossbeam movement adopts graded positioning, which ensures machining with the ram extended to the shortest length andimproves machining precision.

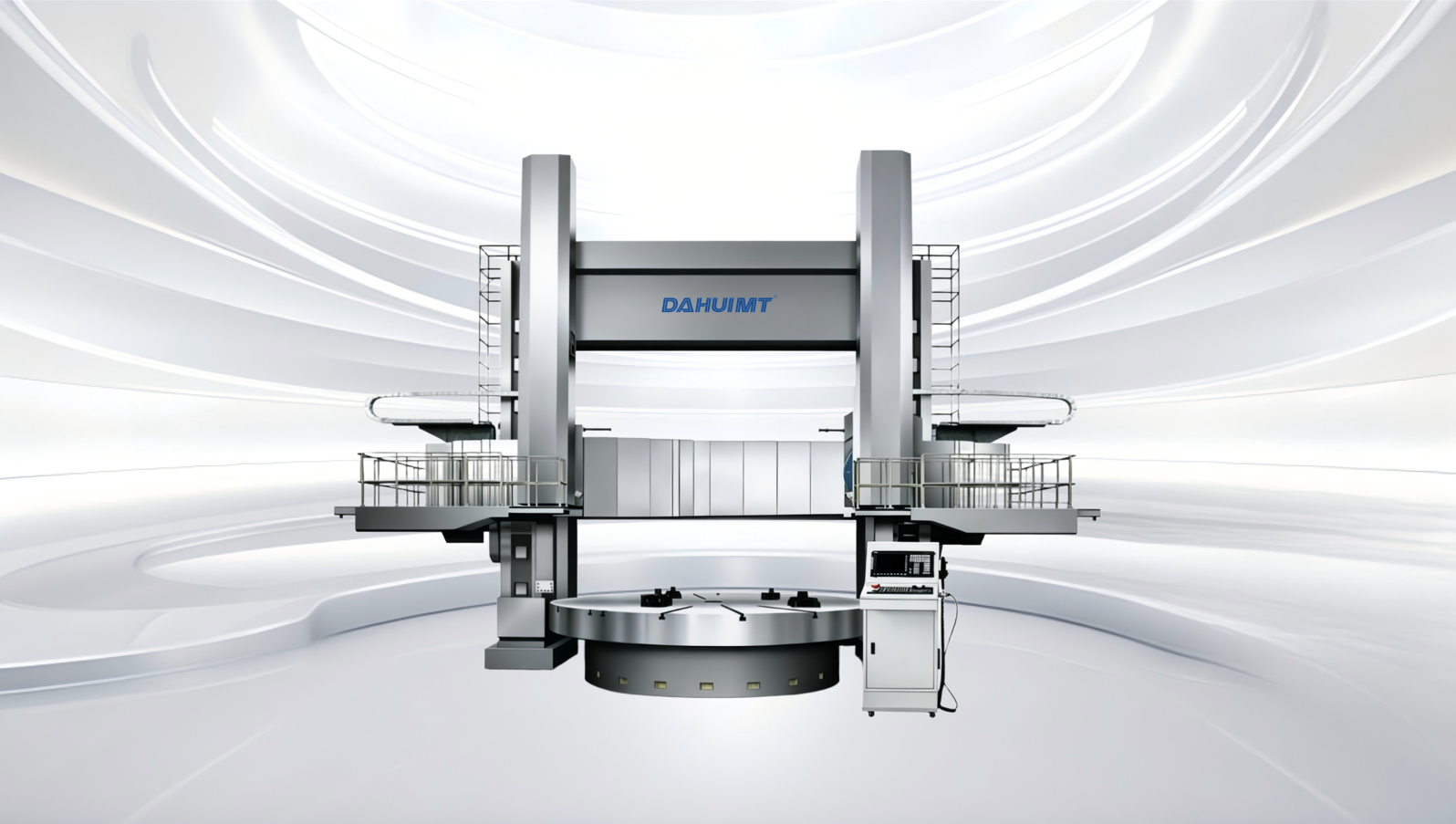

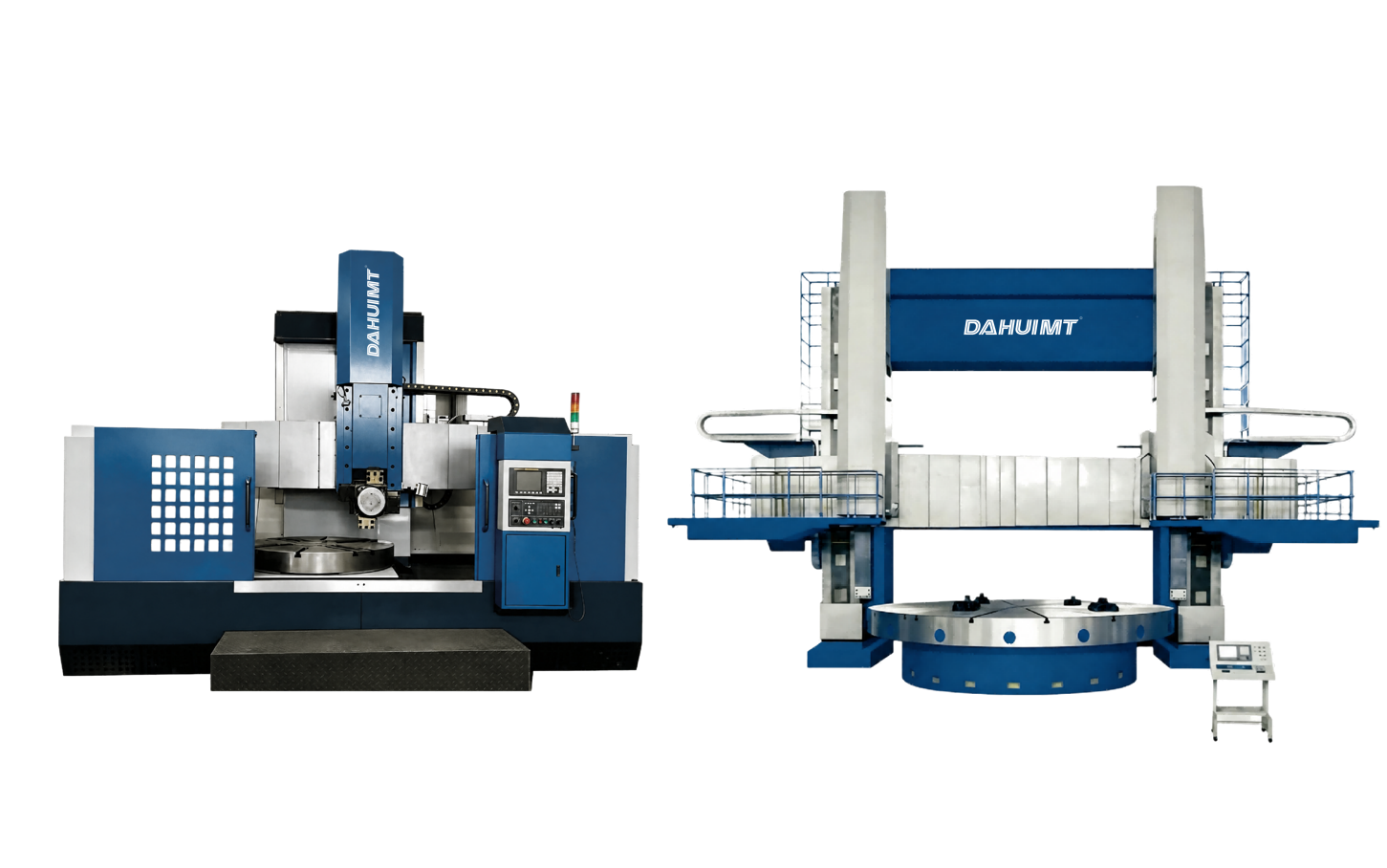

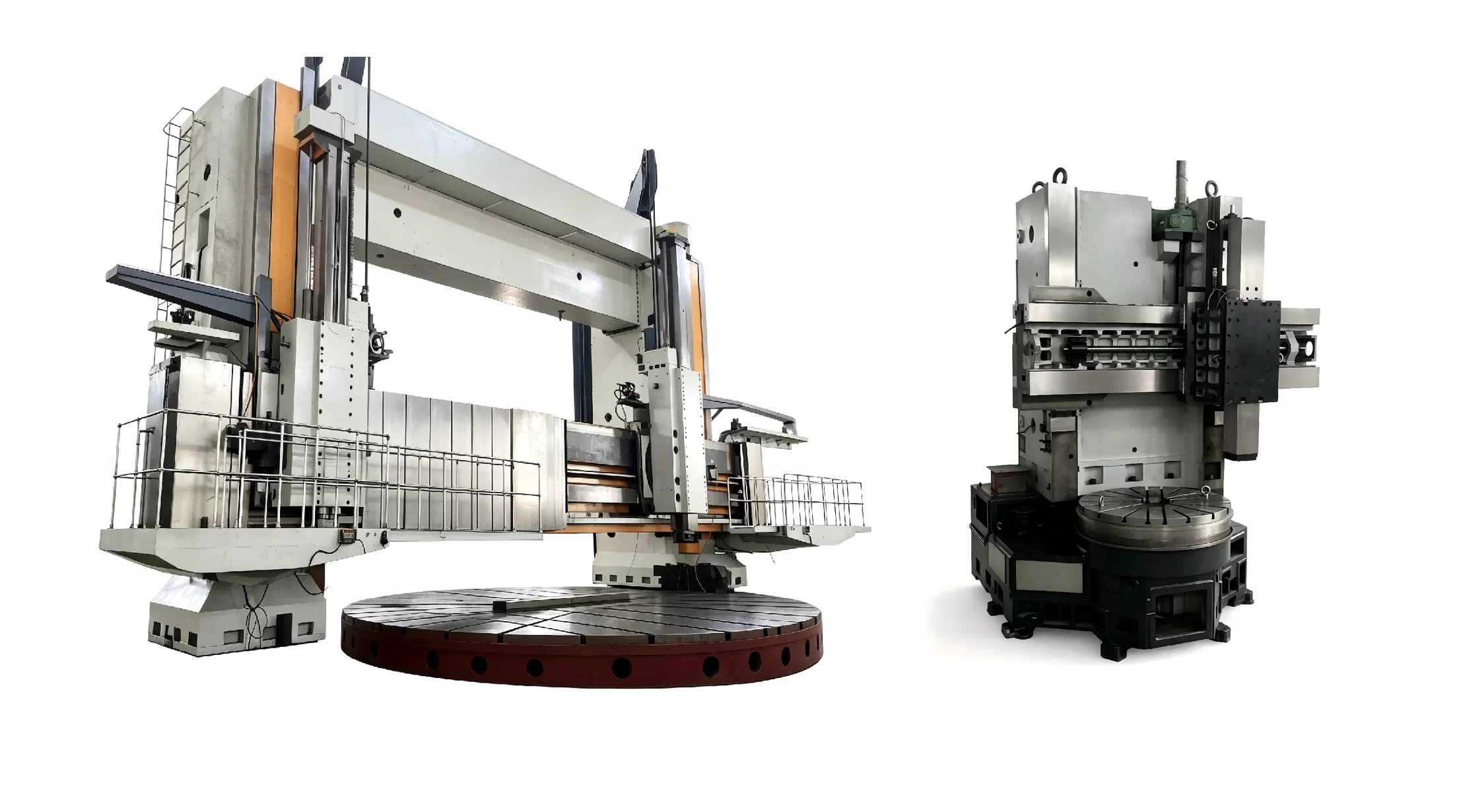

· The CNC vertical lathe is an advanced equipment with excellent performance, a wide processing range and high production efficiency.t is suitable for mechanical processing in various industries, and can be used for the rough and finish machining of inner and outercyindrical surfaces, inner and outer conical surfaces, end faces, grooves, arc surfaces, various curved surfaces and threads
· The main drive of the machine tool is driven by an AC motor, which is connected to a 16-speed or 4-speed spindle transmissionmechanism to achieve the adjustable speed range of the worktable.3. The worktable spindle is centered by high-precision double-row short cyindrical roller bearings with adjustable radial clearance.

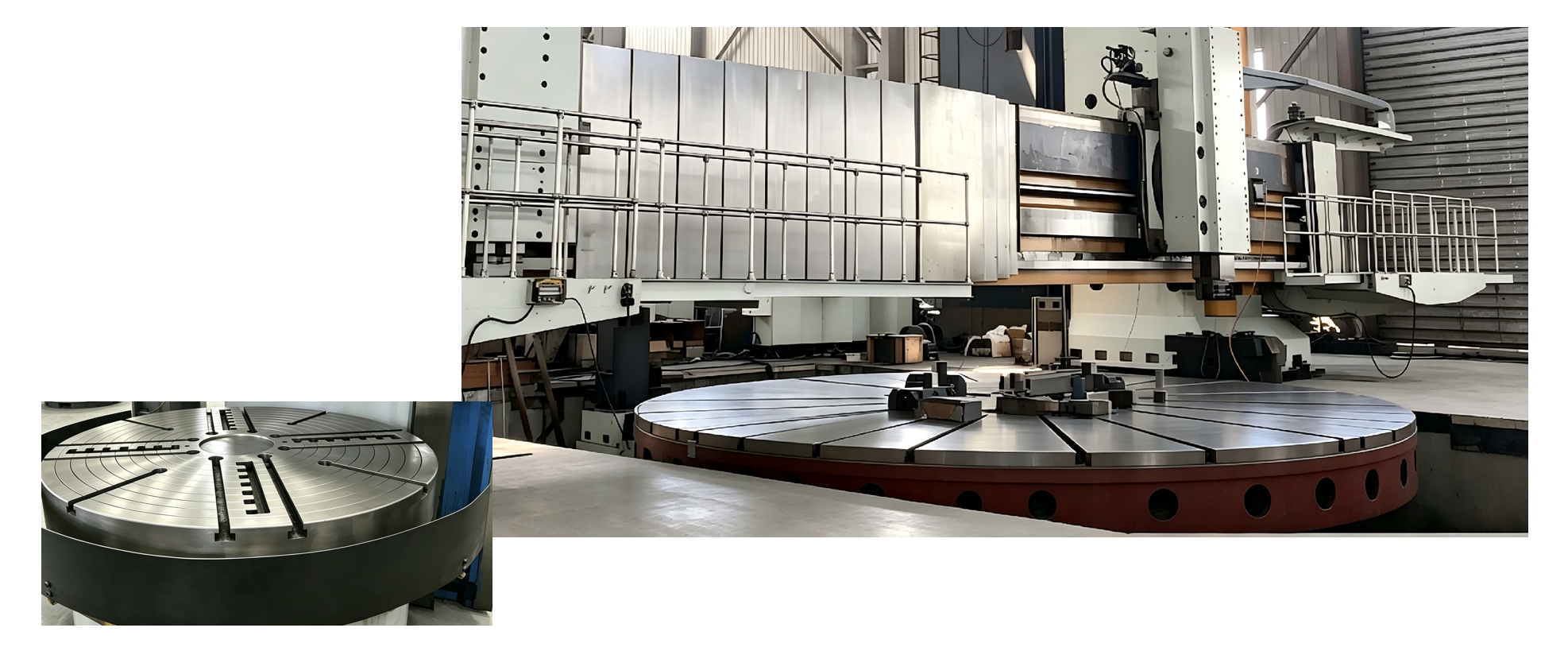

· Theworktable adopts a constant-fow hydrostatic guideway, endowing it with the characteristics of high rotation precision, large loadcapacity and small thermal deformation
· According to user requirements, the machine tool can be equipped with a constant temperature cooling device and an independenthydraulic station system, which can ensure the machining precision and the stability of various technical indicators of the machinetool.

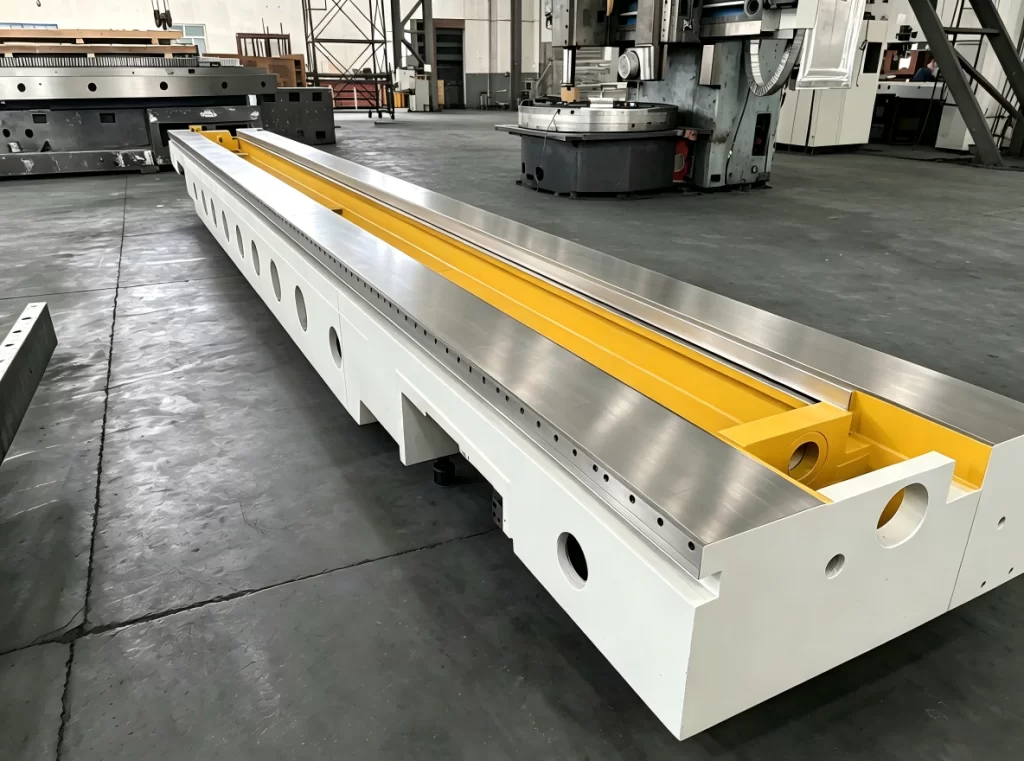

· The guide surfaces of the column, crosbeam, ram and other components are treated with high-frequency quenching and precisiongrinding, featuring high precision and superior quality.

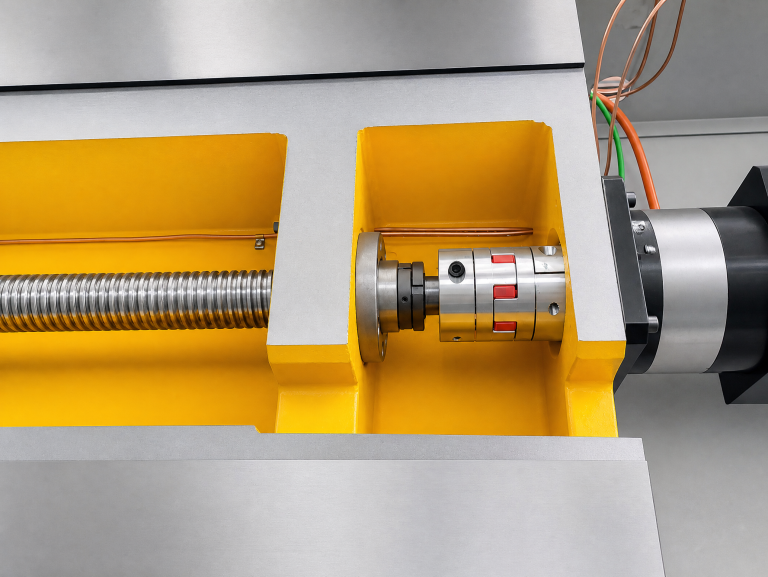

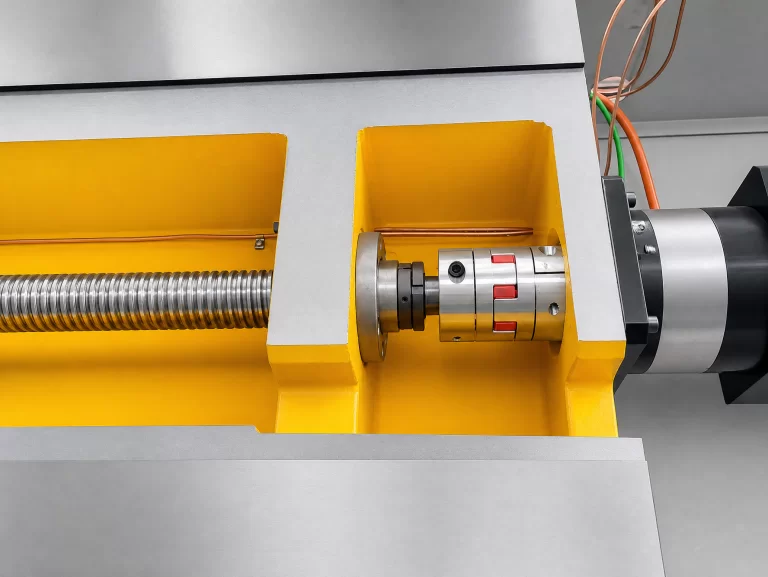

· The feed system of the machine tool adopts servo motors and ball screw transmission. The crossbeam and vertical tool rest areequipped with enclosed shields, which improve the safety and human-friendliness of the machine tool.

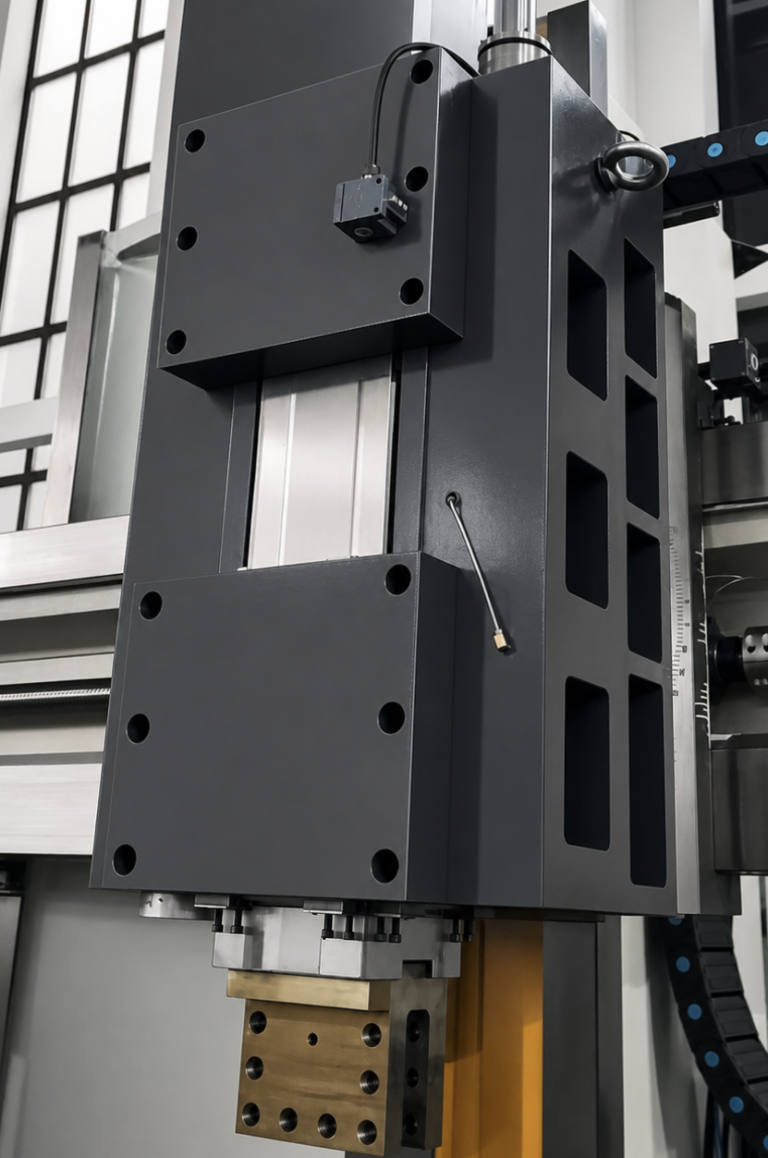

· The ram is upgraded to a square ram with a large cross-sectional dimension and excelent rigidity. The contact surface between thetop of the crossbeam and the rollers is of an inlaid steel structure.

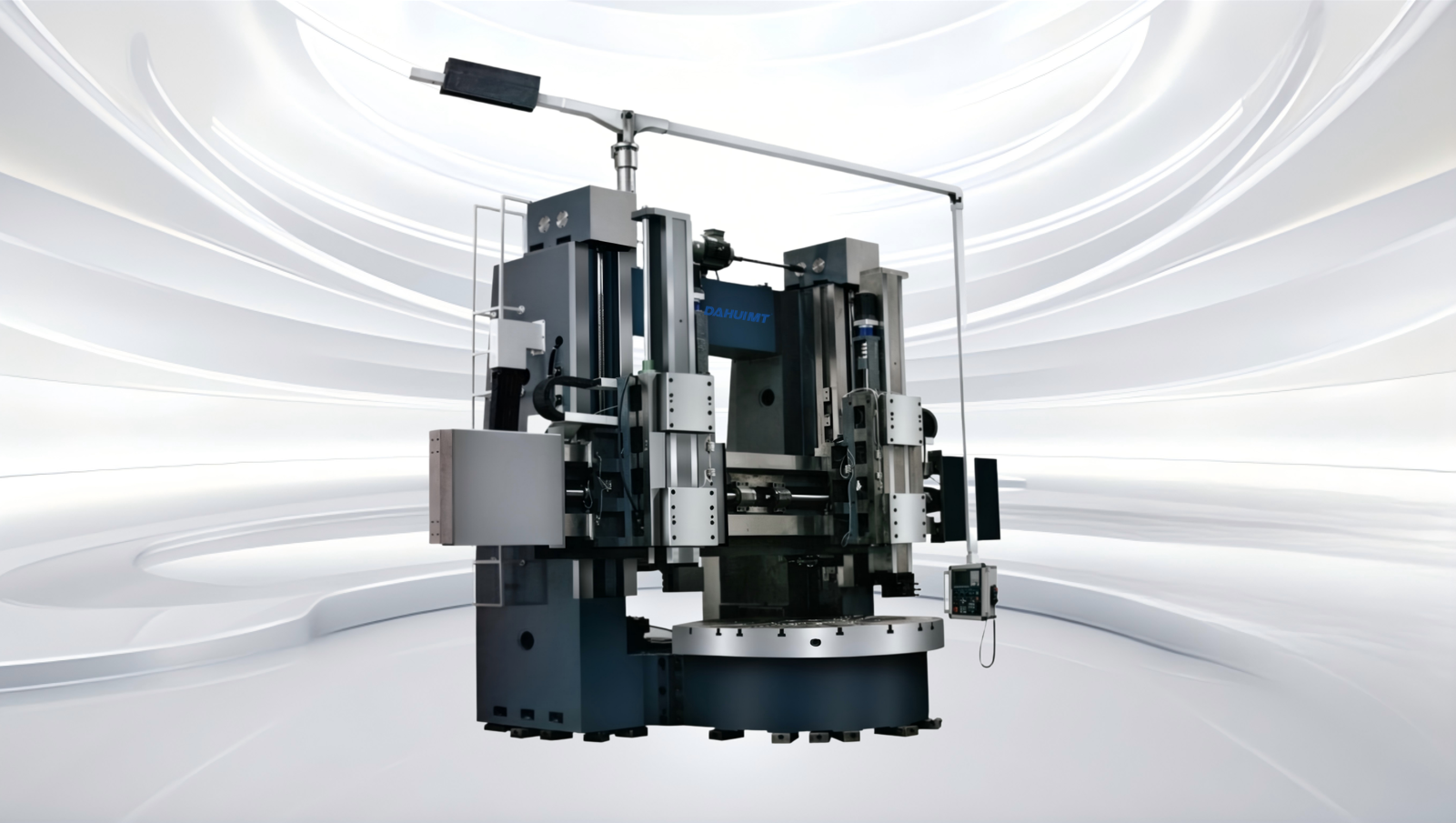

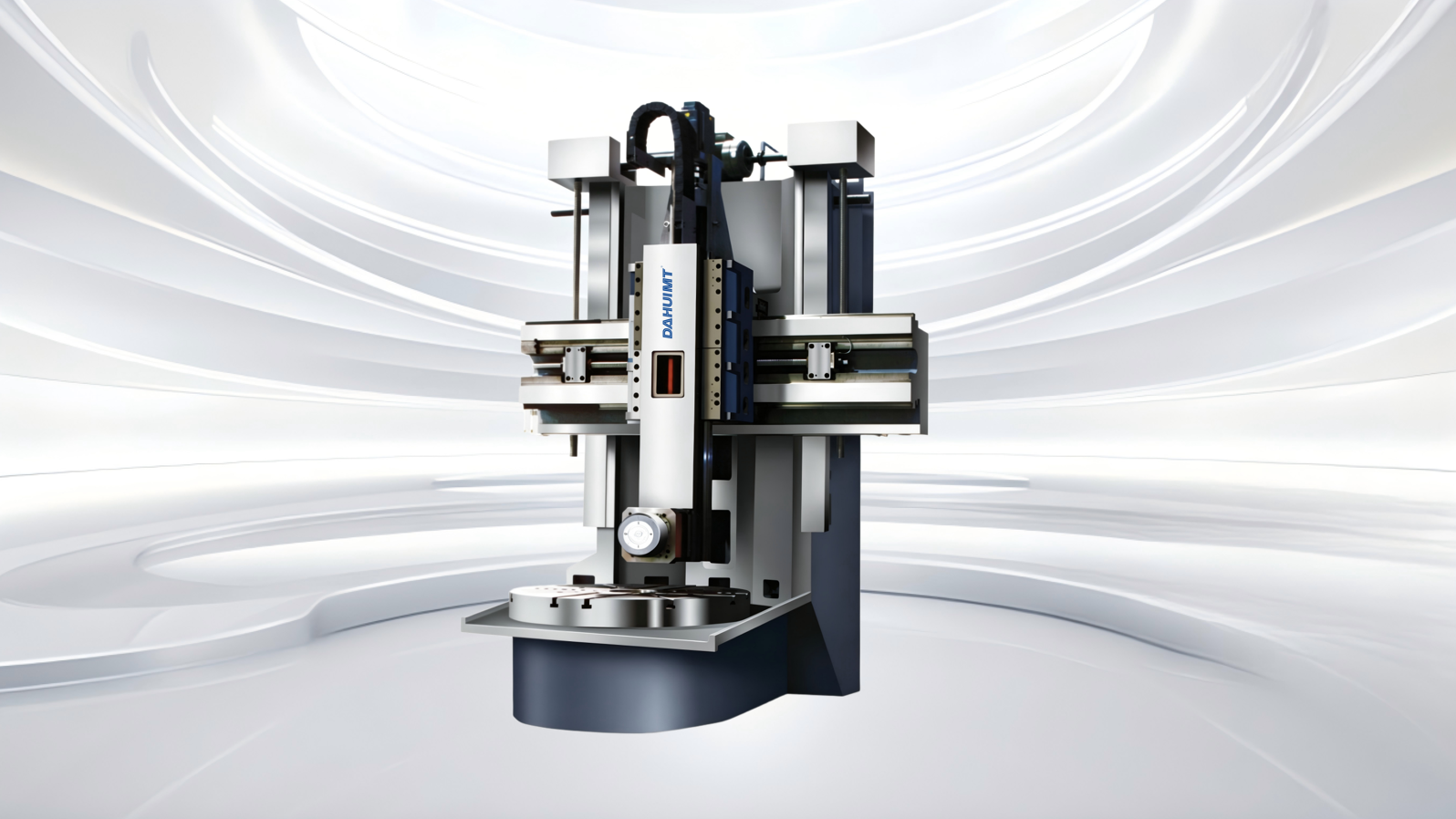

· The CNC vertical lathe is an advanced piece of equipment with excellent performance, a wide processing range and highproduction efficiency. Itis suitable for mechanical processing in various industries, and can be used for the rough and finishmachining of inner and outer cylindrical surfaces, inner and outer conical surfaces, end faces, grooves, arc surfaces, variouscurved surfaces and threads.
· The main drive of the machine tool is driven by an AC motor, and the speed range of the worktable is achieved througha two-speed transmission mechanism.
· The spindle of the worktable is centered by high-precision double row short cylindrical roller bearings with adjustableradial clearance, and the worktable adopts a constant-flow hydrostatic guideway. This endows the worktable with thecharacteristics of high rotation precision, large load capacity and small thermal deformation.
· According to user requirements, the machine tool can be equipped with a constant temperature cooling device and anindependent hydraulic station system, which can ensure the machining precision of the machine tool and the stability ofvarious technical indicators.
· The guide surfaces of the column, crossbeam, ram and other components are treated with high-frequency quenchingand precision grinding, featuring high precision and good quality.
· The feed system of the machine tool adopts servo motors and ball screw transmission. The crossbeam and vertical toolrest are equipped with enclosed shields, which enhance the safety and human-friendliness of the machine tool.
· For the CNC system, imported or domestic configurations can be selected according to user needs; an electric grindinghead can also be customized and installed as required by the user.
We would be happy to make an individual offer for you!
